Name | Parameters | Remarks |
Grinding Wheel | Φ900mm outer diameter, 1 piece | |
Main Motor | 37 kW (six - speed) | |
Spring Pressing Method | Hydraulic (pressure adjustable) | |
Grinding Wheel Linear Speed | 35m/s | |
Oscillation Mode | Variable frequency stepless speed regulation | 3.7KW motor with gearbox |
Spring Grinding Feeding Method | Automatic feeding (servo motor) | |
Machine Tool Guide Rail | 55mm wide linear roller guide (used during feeding) | High - precision roller guide |

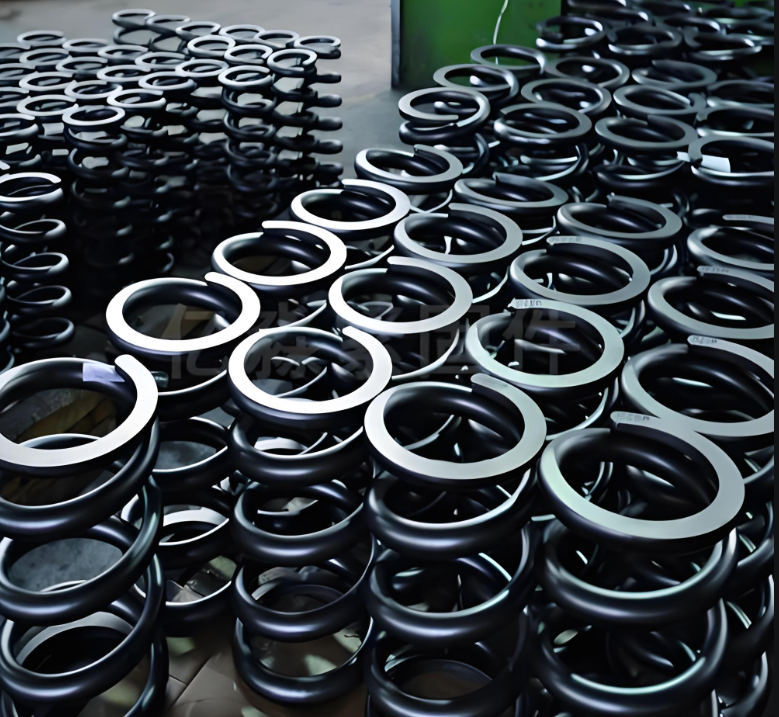

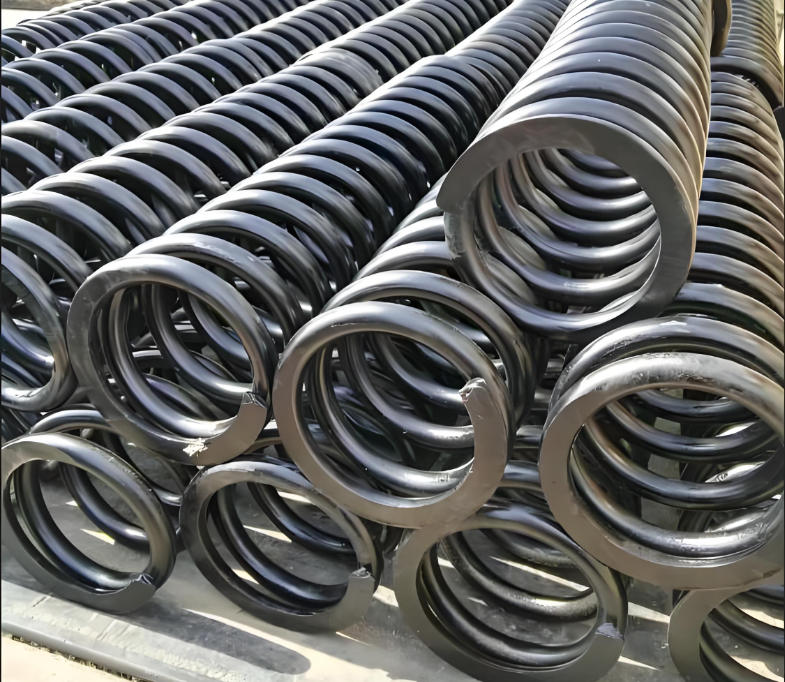

Grinding Spring Outer Diameter | Maximum outer diameter Φ400mm, 2 pieces can be ground simultaneously; Outer diameter Φ150mm - 200mm, 4 pieces can be ground simultaneously; Outer diameter Φ60mm - 150mm, 8 pieces can be ground simultaneously | 8 pieces ground together need an additional fixture |
Grinding Wire Diameter | Maximum Φ80mm | |
Grinding Spring Length | About 1000mm | Customizable |
Machine Tool Weight | 6.5 tons | |
Cooling Method | Water circulation cooling | 1.5KW water pump, flow rate 15T/h |
Total Power of Machine Tool | 42 kW | |
Grinding Chip Separation | Automatic separator separates water and chips | Separates grinding chips |
Servo Motor and Planetary Gearbox | Used during spring grinding feeding | 2KW servo motor and 1:50 planetary gearbox |
Machine Tool Lubrication | Automatic lubrication with settable time |
