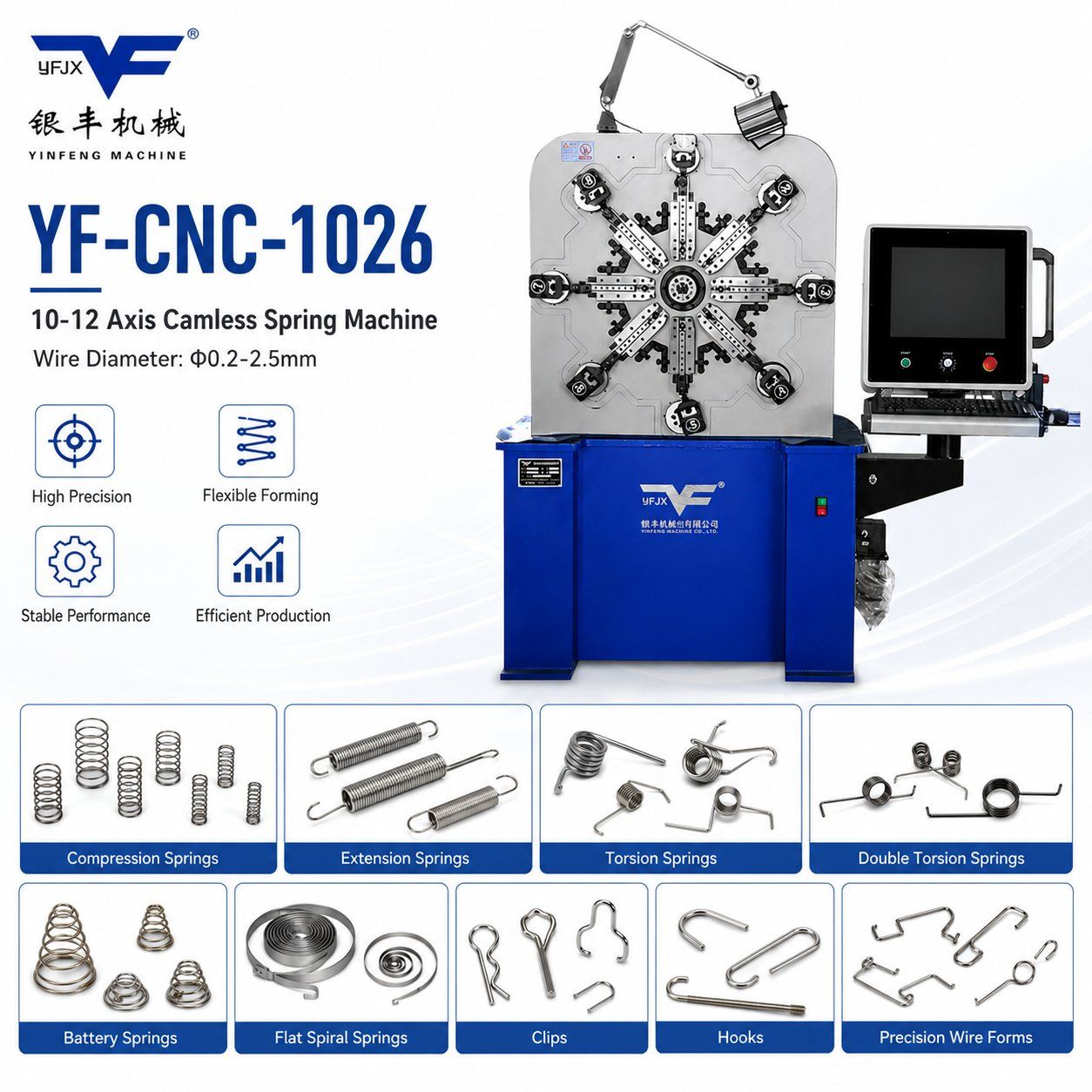

The YF-CNC-1026/1126 CNC Camless Spring Forming Machine is engineered for manufacturers who demand high precision, fast product changeovers, and flexible production. Equipped with 10 or 11 independent servo-controlled axes, this machine eliminates traditional mechanical cams and enables efficient production of compression springs, torsion springs, extension springs, double torsion springs, special-shaped springs, and complex wire forms.
Compared with conventional cam-driven spring machines, the YF-CNC-1026/1126 significantly reduces setup time through intelligent CNC programming while improving forming accuracy and production efficiency. It is an ideal solution for custom spring manufacturing, prototype development, and high-mix production.
CNC camless spring forming technology
10-axis (YF-CNC-1026) or 11-axis (YF-CNC-1126) servo control
High-speed wire feeding up to 100 m/min
Supports wire diameters from 0.2–2.5 mm
More than 2,000 program storage capacity
Fast product changeover without replacing mechanical cams
High precision and excellent repeatability
Suitable for complex spring shapes and wire forms
User-friendly CNC control system
English interface and customized language service available
Stable performance with low maintenance requirements
The YF-CNC-1026/1126 can manufacture a wide range of precision spring and wire products, including:
Compression Springs
Extension Springs
Torsion Springs
Double Torsion Springs
Conical Springs
Variable Pitch Springs
Special-Shaped Springs
Spring Clips
Wire Hooks
Wire Brackets
Automotive Retainers
Custom Wire Forms
Its flexible servo-controlled system enables manufacturers to switch quickly between different spring designs while maintaining excellent product consistency.
This machine is widely used in:
Automotive Industry
Electronics Industry
Medical Devices
Home Appliances
Furniture Hardware
Industrial Equipment
Agricultural Machinery
Hardware Manufacturing
Custom Spring Manufacturing
The machine can process a variety of wire materials within its specified wire diameter range, including:
Carbon Steel Wire
Stainless Steel Wire
Spring Steel Wire
Music Wire
Copper Wire
Phosphor Bronze Wire
Alloy Steel Wire
Different materials can be processed simply by adjusting CNC parameters and tooling settings.
Unlike traditional cam-driven spring machines, the YF-CNC-1026/1126 uses independent servo-controlled slides to perform every forming action digitally.
Programs can be loaded directly without replacing mechanical cams, dramatically reducing setup time.
The machine easily handles different spring types and custom designs through CNC programming.
Independent servo motors provide accurate positioning and outstanding repeatability.
Shorter setup times, less manual adjustment, and higher machine utilization help reduce overall production costs.
| Specification | YF-CNC-1026 | YF-CNC-1126 |
|---|---|---|
| Wire Diameter | 0.2–2.5 mm | 0.2–2.5 mm |
| Max. Wire Feed Instruction | 10000 mm | 10000 mm |
| Min. Wire Feed Instruction | 0.01 mm | 0.01 mm |
| Max. Wire Feed Speed | 100 m/min | 100 m/min |
| Max. Wire Feed Length | Infinite | Infinite |
| Input Voltage | 380V ±10%, 50Hz (Customized) | 380V ±10%, 50Hz (Customized) |
| Program Storage | More than 2,000 Programs | More than 2,000 Programs |
| Total Power | 9.45 kW | 10.2 kW |
| Number of Servo Axes | 10 Axis | 11 Axis |
| Wire Feed Wheels | 2 Pairs | 2 Pairs |
| Wire Feeding Servo | 2.7 kW | 2.7 kW |
| Mandrel Rotation Servo | 0.75 kW | 0.75 kW |
| Spinner Servo | Optional | 0.75 kW |
| Forming Slide Servo | 0.75 kW × 8 | 0.75 kW × 8 |
| Machine Size (L × W × H) | 1600 × 1000 × 1800 mm | 1600 × 1000 × 1800 mm |
| Net Weight | 1200 kg | 1250 kg |
Yinfeng has years of experience in CNC spring machinery manufacturing and provides complete technical support for customers worldwide.
Our services include:
Machine Selection Consultation
Spring Sample Testing
Factory Acceptance Testing
Installation Guidance
Programming Training
English & Customized Language Interface
Spare Parts Supply
Online Technical Support
Professional After-Sales Service
Yes. It can produce compression springs, extension springs, torsion springs, double torsion springs, special-shaped springs, and various custom wire forms.
Yes. The CNC controller stores more than 2,000 production programs, making repeat production quick and efficient.
Yes. English is standard, and Yinfeng also offers customized language services according to customer requirements.
Absolutely. Its independent servo-controlled forming system is specifically designed for flexible, high-precision custom spring production.
The YF-CNC-1026/1126 CNC Camless Spring Forming Machine combines intelligent CNC programming with advanced servo-controlled technology to provide manufacturers with greater flexibility, faster setup, and exceptional forming accuracy.
Whether producing standard springs or developing complex custom spring designs, Yinfeng offers a reliable solution that improves productivity while reducing production costs.
The YF-CNC-1026/1126 is designed for manufacturers producing precision spring components from small-diameter wire.
With its CNC camless spring forming technology, the machine provides accurate control of wire feeding, coiling, pitch adjustment, spring leg forming and customized spring-end shaping.
The YF-CNC-1026/1126 is suitable for customers requiring high precision, flexible production and stable repeatability for small wire spring applications in electronics, electrical devices, automotive components, precision instruments and mechanical assemblies.
The YF-CNC-1026/1126 can manufacture various small and precision spring components, including:
Precision torsion springs
Small compression springs
Small extension springs
Micro extension springs
Switch springs
Connector springs
Contact springs
Battery contact springs
Sensor springs
Relay springs
Small mechanism springs
Precision wire springs
Custom-shaped spring components
Small wire formed spring parts
Final manufacturability depends on wire diameter, material properties, spring geometry, coil diameter, pitch requirements, dimensional tolerance and application conditions.
The YF-CNC-1026/1126 is suitable for producing compact torsion springs requiring accurate torque performance and consistent forming quality.
Small hinge torsion springs
Switch mechanism springs
Electronic device torsion springs
Locking mechanism springs
Precision actuator springs
Instrument mechanism springs
The CNC camless control system enables accurate adjustment of coil position, spring legs and end-form geometry.
The machine provides precise forming capability for small compression springs used in compact mechanical structures.
Miniature compression springs
Precision cylindrical compression springs
Small conical springs
Button springs
Buffer springs
Mechanical support springs
Accurate pitch control helps maintain consistent spring force and product dimensions.
The YF-CNC-1026/1126 supports production of compact extension springs with customized hook designs.
Small tension springs
Return springs
Electronic mechanism springs
Appliance mechanism springs
Control system springs
Custom hook springs
Different hook shapes and spring ends can be developed according to customer drawings.
This machine is particularly suitable for precision springs used in electronic and electrical products.
Switch contact springs
Connector springs
Battery terminal springs
Relay springs
Sensor springs
Electrical contact components
These applications require accurate dimensions, stable performance and repeatable production quality.
The YF-CNC-1026/1126 can produce small spring components used in automotive mechanisms and interior systems.
Control button springs
Locking mechanism springs
Small return springs
Sensor mechanism springs
Interior assembly springs
Customized automotive springs
The machine is suitable for automotive suppliers requiring multiple spring models and flexible production.
The machine can manufacture small springs used in instruments and precision mechanical equipment.
Measuring instrument springs
Control mechanism springs
Precision actuator springs
Small positioning springs
Instrument return springs
Customized precision springs
Stable CNC forming control helps achieve consistent spring performance.
The YF-CNC-1026/1126 provides flexible production capability for compact spring applications.
Product mechanism springs
Button springs
Small hinge springs
Cover mechanism springs
Toy mechanism springs
Customized small springs
The machine supports efficient production for various small-batch spring designs.
The YF-CNC-1026/1126 supports flexible CNC spring forming operations.
Precision coiling
Fine pitch adjustment
Small spring leg forming
Hook forming
Multi-angle bending
Spring-end shaping
Multiple coil sections
CNC program storage
Quick model changeover
Customized tooling development
The forming process can be optimized according to spring drawings, material specifications and production requirements.
The YF-CNC-1026/1126 can process various precision spring wire materials.
Stainless steel spring wire
Carbon steel spring wire
Piano wire
Alloy spring wire
Precision spring wire
Copper alloy wire
Other customized spring materials
Actual capability depends on wire diameter, hardness, tensile strength, spring geometry and tooling configuration.
Yinfeng provides customized tooling and spring forming solutions according to customer product requirements.
Customers can provide:
Spring drawing
Product sample
Wire diameter
Material specification
Coil diameter
Spring length
Number of coils
Hook or leg dimensions
Required tolerance
Production quantity
Yinfeng can evaluate the product design and develop suitable CNC programs and tooling solutions.
