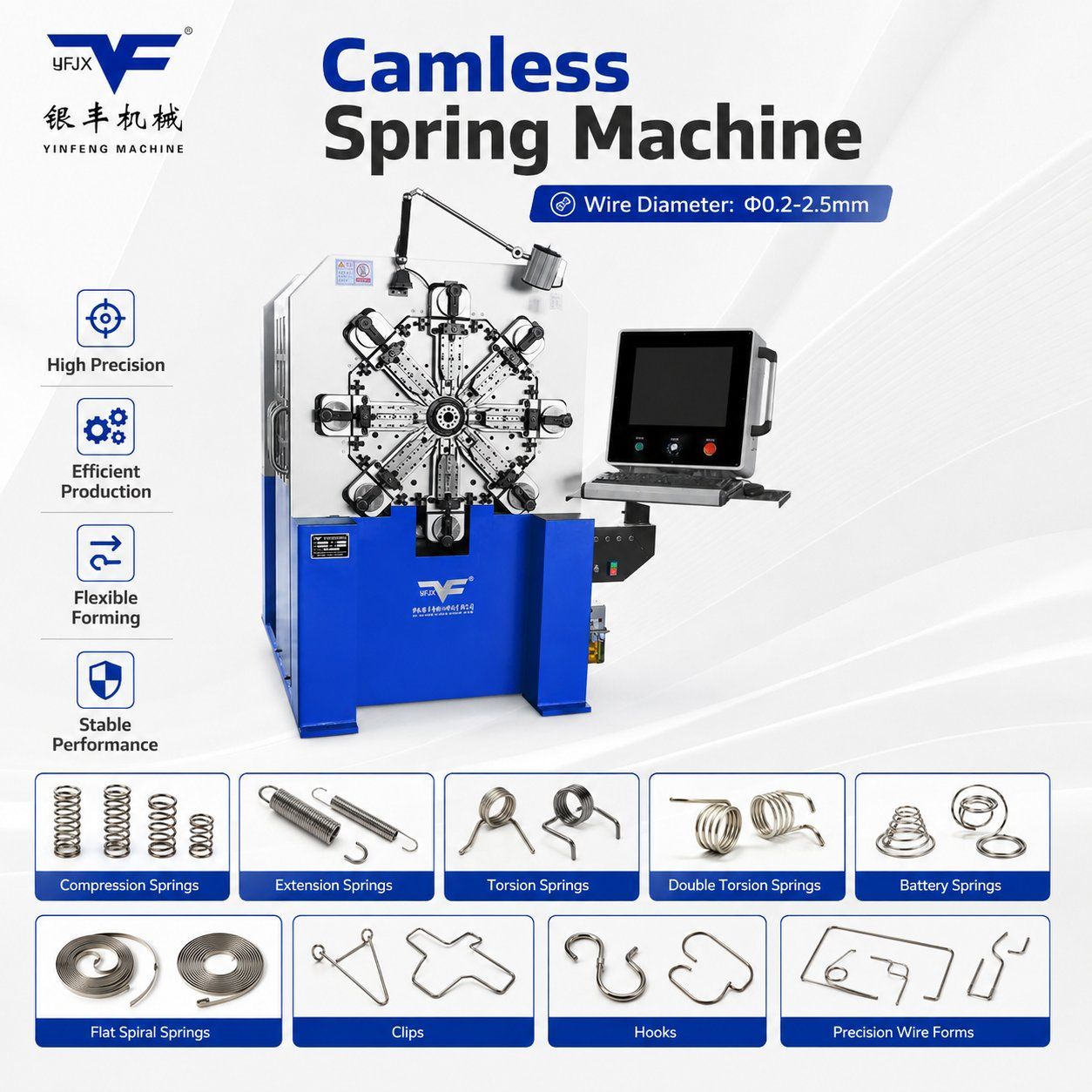

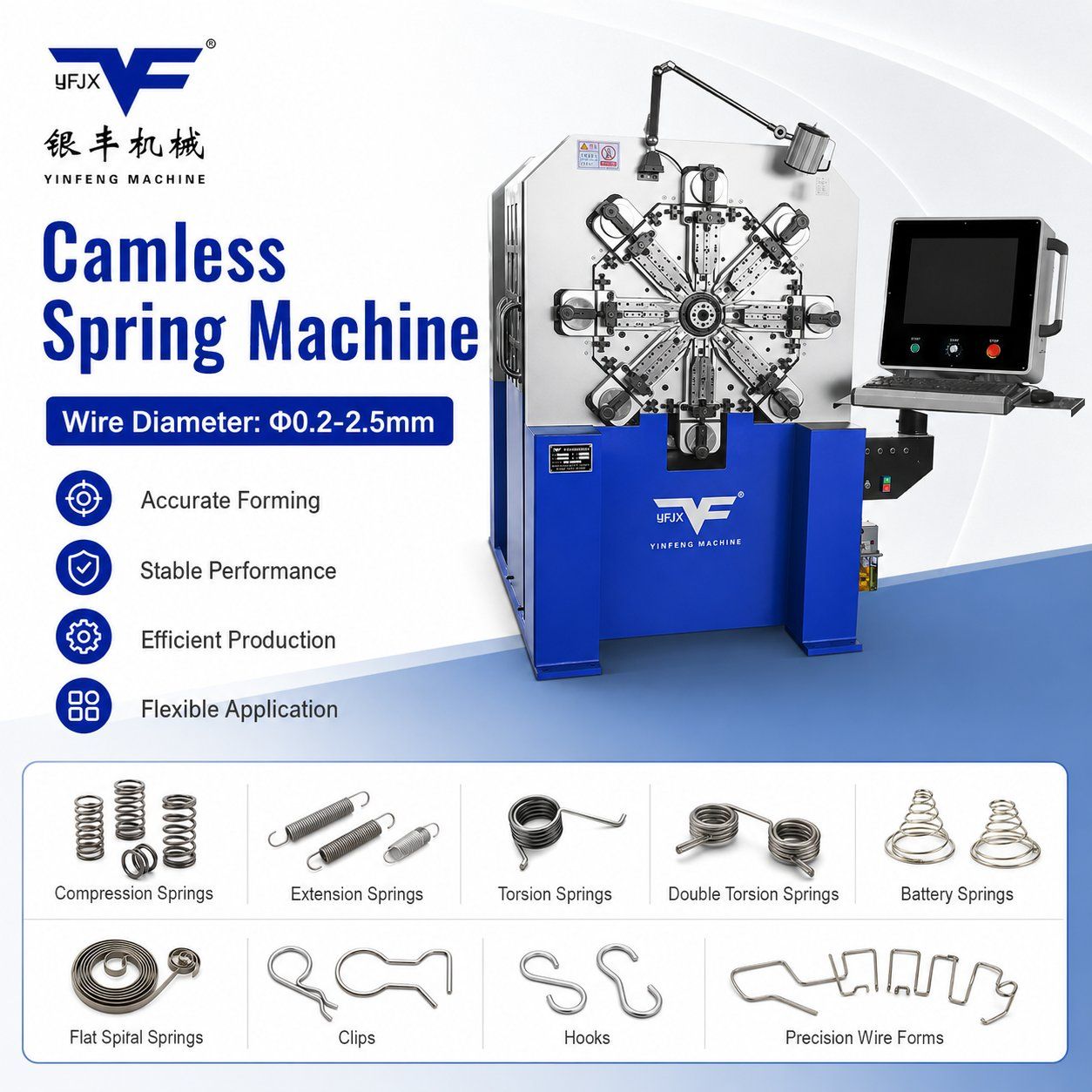

The YF-CNC-1225 CNC Camless Spring Forming Machine is designed for manufacturers that require higher flexibility, stronger forming capability, and precise multi-axis control. With a 12-axis servo-controlled system, this machine is suitable for producing compression springs, torsion springs, extension springs, double torsion springs, special-shaped springs, and complex wire forms.
Compared with traditional cam-driven spring machines, the YF-CNC-1225 eliminates mechanical cam replacement and allows operators to complete product changeovers through CNC programming. This makes it ideal for custom spring manufacturing, high-mix production, and small to medium batch orders.
12-axis CNC camless spring forming system
Supports wire diameters from 0.4–2.5 mm
High-speed wire feeding up to 100 m/min
More than 2,000 program storage capacity
3 pairs of wire feed wheels for stable feeding
Independent servo-controlled forming slides
Wire rotation and mandrel rotation functions
Fast setup without mechanical cam replacement
Suitable for complex spring shapes and wire forms
English interface and customized language service available
Ideal for custom spring production
The YF-CNC-1225 can manufacture a wide range of precision spring and wire products, including:
Compression Springs
Extension Springs
Torsion Springs
Conical Springs
Variable Pitch Springs
Special-Shaped Springs
Spring Clips
Wire Hooks
Wire Brackets
Automotive Retainers
Custom Wire Forms
| Specification | YF-CNC-1225 |
|---|---|
| Wire Diameter | 0.4–2.5 mm |
| Max. Wire Feed Instruction | 10000.00 mm |
| Min. Wire Feed Instruction | 0.01 mm |
| Max. Wire Feed Speed | 0–100 m/min |
| Max. Wire Feed Length | Infinite length |
| Input Voltage | 380V ±10%, 50Hz Customized |
| Program Storage | More than 2,000 programs |
| Total Power | 12.9 kW |
| Number of Servo Axes | 12 Axis |
| Wire Feed Wheels | 3 Pairs |
| Wire Feeding Servo Motor | 2.7 kW |
| Wire Rotation Servo Motor | 2.7 kW |
| Mandrel Rotation Servo Motor | 0.75 kW |
| Spinner Servo Motor | 0.75 kW |
| Forming Slide Servo Motor | 0.75 kW × 8 |
| Machine Size (L × W × H) | 1450 × 1400 × 1650 mm |
| Net Weight | 1500 kg |
This CNC camless spring forming machine is widely used in:
Automotive Components
Electronics Industry
Medical Device Components
Home Appliances
Furniture Hardware
Industrial Equipment
Agricultural Machinery
Hardware Manufacturing
Custom Spring Manufacturing
The machine can process different wire materials within its specified wire diameter range, including:
Carbon Steel Wire
Stainless Steel Wire
Spring Steel Wire
Music Wire
Copper Wire
Phosphor Bronze Wire
Alloy Steel Wire
The 12-axis servo-controlled structure gives the YF-CNC-1225 excellent flexibility for complex spring forming.
The additional servo control allows the machine to handle more complex forming sequences and spring shapes.
With 3 pairs of wire feed wheels, the machine provides stable wire feeding for consistent product quality.
Saved programs can be loaded quickly, reducing setup time and improving production efficiency.
Servo-controlled movement ensures accurate positioning and stable forming results across production batches.
Yinfeng provides professional CNC spring forming solutions for global manufacturers. We support customers with:
Machine Selection Consultation
Spring Sample Testing
Installation Guidance
Programming Training
English & Customized Language Interface
Spare Parts Supply
Online Technical Support
Professional After-Sales Service
The machine supports wire diameters from 0.4 mm to 2.5 mm.
The YF-CNC-1225 is equipped with a 12-axis servo-controlled system.
Yes. The CNC controller can store more than 2,000 production programs.
Yes. The camless servo-controlled system is ideal for producing custom springs, special-shaped springs, and complex wire forms.
The YF-CNC-1225 CNC Camless Spring Forming Machine provides high precision, stable feeding, and flexible 12-axis servo control for modern spring manufacturing. It is especially suitable for manufacturers producing custom springs, torsion springs, double torsion springs, special-shaped springs, and complex wire forms.
With advanced CNC programming and professional support from Yinfeng, this machine helps manufacturers improve productivity, reduce setup time, and achieve consistent spring quality.
The YF-CNC-1225 is designed for manufacturers producing precision spring components from small-diameter wire.
With its 12-axis CNC camless spring forming system, the machine provides accurate control of wire feeding, coiling, pitch adjustment, spring leg forming and customized end shaping.
The YF-CNC-1225 is suitable for high-precision spring production requiring stable repeatability, flexible programming, quick product changeover and consistent forming quality.
Typical applications include electronics, electrical equipment, automotive components, precision instruments, medical devices and small mechanical assemblies.
The YF-CNC-1225 can manufacture various precision spring components, including:
Precision torsion springs
Small torsion springs
Micro extension springs
Small compression springs
Conical compression springs
Barrel springs
Variable pitch precision springs
Switch springs
Connector springs
Contact springs
Battery contact springs
Sensor springs
Small mechanical springs
Custom-shaped precision spring components
Final manufacturability depends on wire material, wire diameter, spring geometry, coil diameter, pitch requirements, dimensional tolerance and application requirements.
The YF-CNC-1225 is suitable for producing small torsion springs requiring accurate torque control and stable dimensional performance.
Electronic device torsion springs
Switch mechanism springs
Small hinge springs
Precision locking springs
Automotive interior mechanism springs
The CNC camless structure allows flexible control of spring legs, coil positioning and customized end shapes.
The machine provides precise forming capability for small compression springs used in compact mechanical systems.
Precision compression springs
Small cylindrical compression springs
Conical compression springs
Miniature buffer springs
Instrument springs
Electronic equipment springs
Accurate pitch control helps maintain consistent spring force and dimensional stability.
The YF-CNC-1225 supports production of small extension springs with customized hook designs.
Small tension springs
Precision return springs
Switch return springs
Electronic mechanism springs
Appliance mechanism springs
Customized hook springs
Different hook structures can be developed according to customer drawings and installation requirements.
The YF-CNC-1225 is particularly suitable for precision spring applications requiring compact size and stable performance.
Switch contact springs
Connector springs
Battery contact springs
Terminal springs
Relay springs
Electrical mechanism springs
These components require accurate forming, repeatability and reliable contact performance.
The machine can produce small and medium spring components used in automotive mechanisms and interior systems.
Seat mechanism springs
Locking mechanism springs
Sensor mechanism springs
Control button springs
Small return springs
Customized automotive springs
The CNC system supports stable repeat production for automotive component suppliers.
The YF-CNC-1225 is suitable for spring manufacturers serving precision equipment industries.
Medical device springs
Instrument springs
Precision actuator springs
Small mechanical springs
Control mechanism springs
Precision return springs
These applications require consistent dimensions and controlled spring performance.
The machine can manufacture customized springs used in daily products and compact mechanisms.
Hinge springs
Button springs
Small return springs
Mechanical support springs
Product mechanism springs
Customized wire springs
Flexible CNC programming enables efficient production of multiple spring designs.
The YF-CNC-1225 supports advanced forming functions for small precision springs.
Precision coiling
Fine pitch adjustment
Small spring leg forming
Custom hook forming
Multi-angle bending
Complex spring-end shaping
Multiple coil sections
CNC program storage
Fast model changeover
Customized tooling development
The forming process can be optimized according to spring drawings, material specifications and required production accuracy.
The YF-CNC-1225 can process various precision spring wire materials.
Stainless steel spring wire
Carbon steel spring wire
Piano wire
Oil-tempered spring wire
Alloy spring wire
Precision spring wire
Other customized spring materials
Actual capability depends on wire diameter, material hardness, tensile strength, spring geometry and tooling configuration.
Yinfeng provides customized spring forming solutions based on customer requirements.
Customers can provide:
Spring drawing
Product sample
Wire diameter
Material specification
Coil diameter
Spring length
Number of coils
Hook or leg design
Required tolerance
Production quantity
Yinfeng can evaluate the spring design and develop suitable tooling and CNC programs for production.
