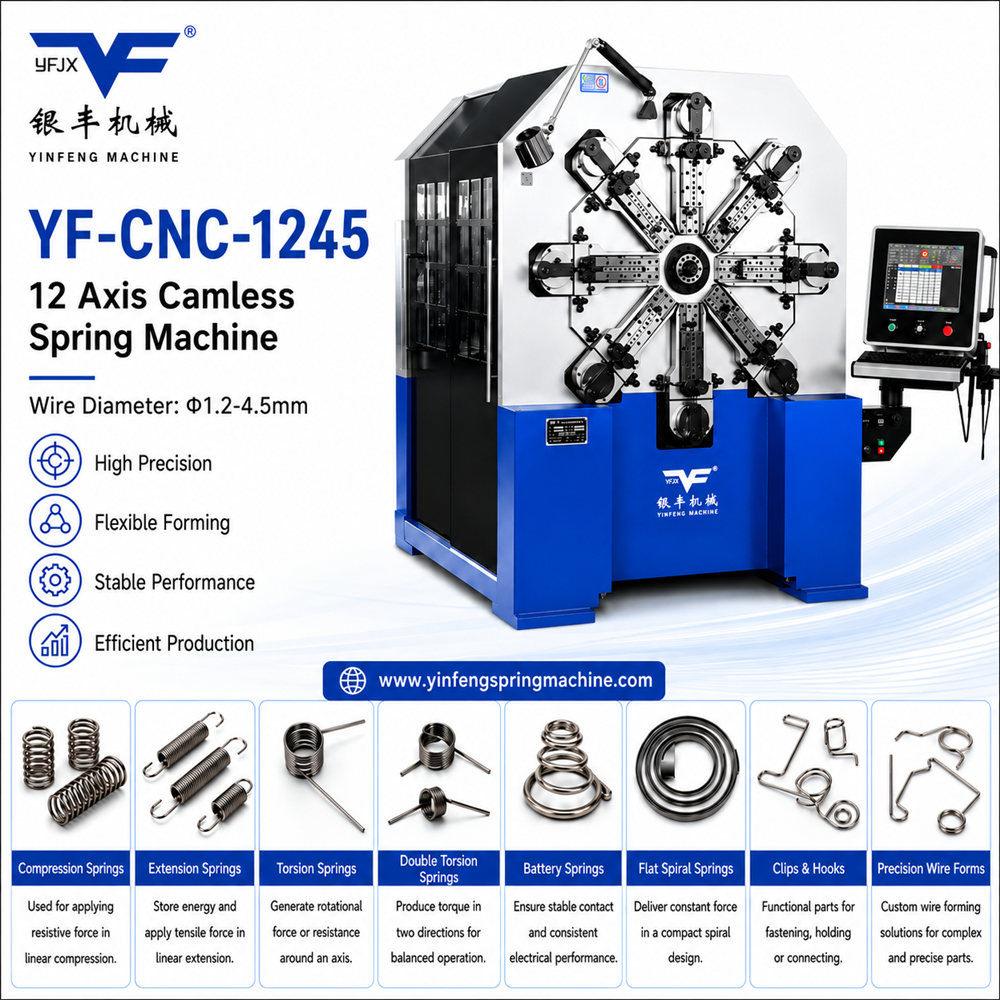

The YF-CNC-1245 CNC Camless Spring Forming Machine is designed for manufacturers that require greater forming power, stable wire feeding, and flexible production of medium-diameter spring products. Equipped with a 12-axis servo-controlled system, the machine processes wire diameters from 1.2 mm to 4.5 mm and is suitable for producing torsion springs, double torsion springs, compression springs, special-shaped springs, spring clips, and complex wire forms.
Unlike traditional cam-driven spring machines, the YF-CNC-1245 uses independent servo-controlled forming slides instead of mechanical cams. Operators can control feeding, wire rotation, mandrel rotation, spinner movement, and forming tool positions through the CNC system.
This configuration helps reduce setup time, improve forming accuracy, and make product changeovers more efficient.
12-axis CNC camless spring forming system
Processes wire diameters from 1.2–4.5 mm
High-speed wire feeding up to 100 m/min
Three pairs of wire feed wheels for stable material feeding
Independent wire rotation servo system
Independent mandrel rotation and spinner control
Eight servo-controlled forming slides
More than 2,000 production programs can be stored
Fast product changeover without replacing mechanical cams
Suitable for medium-diameter and complex spring products
English interface and customized language service available
Designed for custom spring and wire-form production
The YF-CNC-1245 can manufacture a wide range of spring and wire products, including:
Compression Springs
Torsion Springs
Double Torsion Springs
Extension Springs with Formed Ends
Conical Springs
Variable-Pitch Springs
Special-Shaped Springs
Spring Clips
Wire Hooks
Wire Brackets
Automotive Retainers
Agricultural Spring Components
Furniture Springs
Custom Wire Forms
Its 12-axis servo system is especially suitable for products requiring multiple bends, precise leg positioning, wire rotation, or complex forming sequences.
The YF-CNC-1245 processes wire from 1.2 mm to 4.5 mm, making it suitable for stronger and larger spring components used in automotive, agricultural, furniture, appliance, and industrial applications.
Three pairs of wire feed wheels provide reliable gripping force and consistent wire movement. Stable feeding helps maintain product dimensions and improve batch consistency.
The 2.9 kW wire rotation servo allows the wire to rotate during forming, helping the machine manufacture complex three-dimensional springs and wire forms.
The machine combines wire feeding, wire rotation, mandrel rotation, spinner control, and eight forming slides. Each axis can be programmed according to the product geometry.
Production programs can be saved and reused. Repeat orders can be restarted by loading the relevant program and confirming the tooling setup.
Servo-controlled movements provide accurate positioning and consistent forming performance during continuous production.
| Specification | YF-CNC-1245 |
|---|---|
| Model | YF-CNC-1245 |
| Wire Diameter | 1.2–4.5 mm |
| Max. Wire Feed Instruction Value | 10000.00 mm |
| Min. Wire Feed Instruction Value | 0.01 mm |
| Max. Wire Feed Speed | 0–100 m/min |
| Max. Wire Feed Length | Infinite length |
| Input Voltage | 380V ±10%, 50Hz (Customized) |
| Program Data Storage | More than 2,000 programs |
| Total Power | 20.5 kW |
| Number of Axes | 12 Axis |
| Quantity of Wire Feed Wheels | 3 Pairs |
| Wire Feeding Servo Motor | 5.5 kW |
| Wire Rotation Servo Motor | 2.9 kW |
| Mandrel Rotation Servo Motor | 1.2 kW |
| Spinner Servo Motor | 1.0 kW |
| Forming Slide Servo Motor | 1.2 kW × 8 |
The YF-CNC-1245 uses a coordinated servo system to control the complete forming process.
The 5.5 kW wire feeding servo controls material length and feeding speed.
The 2.9 kW wire rotation servo rotates the wire to create complex three-dimensional spring shapes.
The 1.2 kW mandrel rotation servo provides additional control during coiling and forming.
The 1.0 kW spinner servo supports spring end forming and special bending operations.
Eight independent 1.2 kW servo-controlled slides position the forming tools around the working area. This allows different tools to operate independently according to the programmed sequence.
The machine can process various spring wire materials within the specified diameter range, including:
Carbon Steel Wire
Stainless Steel Wire
Spring Steel Wire
Music Wire
Alloy Steel Wire
Galvanized Steel Wire
Copper-Based Wire Materials
Actual production capability depends on material hardness, tensile strength, spring geometry, and tooling configuration.
The YF-CNC-1245 is suitable for spring manufacturers serving industries such as:
Automotive Components
Agricultural Machinery
Furniture Hardware
Home Appliances
Industrial Equipment
Construction Hardware
Electrical Equipment
Fitness Equipment
Transportation Equipment
Custom Spring Manufacturing
Traditional spring machines rely on mechanical cams to control tool movement. Changing products may require cam replacement, mechanical adjustment, and repeated trial production.
The YF-CNC-1245 replaces these mechanical cams with programmable servo axes.
Main benefits include:
Shorter setup time
Faster sampling
Easier program modification
Greater spring-design flexibility
Better positioning control
Reduced mechanical adjustment
Efficient small- and medium-batch production
Easier repeat-order management
Yinfeng provides CNC spring forming equipment and technical support for manufacturers worldwide.
Our services include:
Machine Selection Consultation
Spring Drawing Evaluation
Sample Production Testing
Tooling Configuration Support
Factory Acceptance Testing
Machine Operation Training
Programming Guidance
English Control Interface
Customized Language Service
Spare Parts Supply
Online Technical Support
Professional After-Sales Service
The machine processes steel wire from 1.2 mm to 4.5 mm.
The YF-CNC-1245 is equipped with a 12-axis servo-controlled system.
The maximum wire feed speed is 100 m/min. Actual production speed depends on the spring design, material, and forming complexity.
Yes. Its independent forming slides, wire rotation system, mandrel rotation, and spinner control make it suitable for double torsion springs and other complex spring geometries.
Yes. The control system can store more than 2,000 production programs, helping reduce setup time for repeat orders.
Yes. An English interface is available, and Yinfeng can also provide customized language services according to customer requirements.
Yes. The programmable camless system is particularly suitable for custom springs, frequently changing products, sample development, and high-mix production.
The YF-CNC-1245 CNC Camless Spring Forming Machine combines a 1.2–4.5 mm wire range, 12-axis servo control, three pairs of wire feed wheels, and independent wire rotation technology.
It is an efficient solution for manufacturers producing medium-diameter torsion springs, double torsion springs, special-shaped springs, spring clips, and complex wire forms.
With flexible CNC programming, stable feeding, and professional technical support from Yinfeng, the YF-CNC-1245 helps manufacturers reduce setup time, improve product consistency, and expand their custom spring production capabilities.
The YF-CNC-1245 is designed for manufacturers producing precision spring components from Ø2.0–4.5 mm wire.
With its CNC camless servo-controlled forming system, the machine provides accurate control of wire feeding, coiling, pitch adjustment, spring leg forming and customized end shaping.
The YF-CNC-1245 is ideal for customers requiring flexible production of small and medium-sized springs with high repeatability, quick setup and stable forming performance.
The YF-CNC-1245 can manufacture a wide range of precision spring products, including:
Precision torsion springs
Small torsion springs
Extension springs
Extension springs with customized hooks
Compression springs
Conical compression springs
Barrel springs
Variable pitch springs
Automotive mechanism springs
Electrical equipment springs
Switch springs
Connector springs
Small wire formed springs
Custom-shaped spring components
Precision mechanical springs
Final manufacturability depends on wire diameter, material strength, spring geometry, coil diameter, pitch requirements, spring legs, hook design and required tolerances.
The YF-CNC-1245 is suitable for manufacturing compact torsion springs requiring accurate torque performance and stable dimensional control.
Hinge springs
Switch mechanism springs
Locking mechanism springs
Automotive interior springs
Precision equipment springs
The CNC camless system provides flexible control of coil forming, leg angles and spring-end geometry.
The machine supports production of extension springs with standard or customized hook structures.
Small tension springs
Precision extension springs
Electronic equipment springs
Appliance mechanism springs
Automotive return springs
Customized hook springs
Different hook shapes and spring-end designs can be developed according to customer drawings.
The YF-CNC-1245 can manufacture precision compression springs requiring accurate pitch control and consistent spring force.
Cylindrical compression springs
Small compression springs
Conical compression springs
Barrel springs
Variable pitch springs
Precision mechanical springs
These springs are widely used in mechanical assemblies, electrical devices and consumer equipment.
The YF-CNC-1245 is suitable for producing small and medium automotive spring components requiring stable quality and repeat production.
Seat mechanism springs
Locking mechanism springs
Interior mechanism springs
Control system springs
Return springs
Customized automotive springs
The machine supports efficient production for automotive component suppliers with multiple spring models.
The YF-CNC-1245 is especially suitable for precision springs used in electrical and electronic products.
Switch springs
Connector springs
Contact springs
Button springs
Electronic mechanism springs
These applications require accurate forming, consistent dimensions and reliable repeatability.
The machine can produce customized springs for household appliances and consumer products.
Hinge springs
Cover mechanism springs
Button springs
Small return springs
Mechanical support springs
Customized appliance springs
Flexible CNC programming allows manufacturers to handle different product designs efficiently.
The YF-CNC-1245 provides a flexible solution for industrial manufacturers requiring compact and accurate spring components.
Instrument springs
Control mechanism springs
Small machine springs
Positioning springs
Retaining springs
Customized industrial springs
The machine is suitable for small-batch and high-mix spring production.
The YF-CNC-1245 supports precision forming operations for customized spring designs.
Precision coiling
Pitch control
Spring leg forming
Customized hook forming
Multi-angle bending
Complex spring-end shaping
Multiple spring sections
Stored CNC programs
Quick product changeover
Customized tooling development
The forming process can be optimized according to product drawings, wire materials, installation requirements and dimensional specifications.
The YF-CNC-1245 can process various spring wire materials according to product requirements.
Carbon steel spring wire
Stainless steel spring wire
Oil-tempered spring wire
Alloy spring steel wire
Chrome silicon spring wire
Precision spring wire
Other customized spring materials
Actual processing capability depends on wire strength, hardness, surface condition, spring geometry and tooling configuration.
Yinfeng provides customized tooling and spring forming solutions according to customer requirements.
Customers can provide:
Spring drawing
Product sample
Wire diameter
Material specification
Coil diameter
Spring length
Number of coils
Hook or leg dimensions
Required tolerance
Production quantity
Yinfeng can evaluate the spring design and develop suitable CNC programs and tooling solutions for production.
