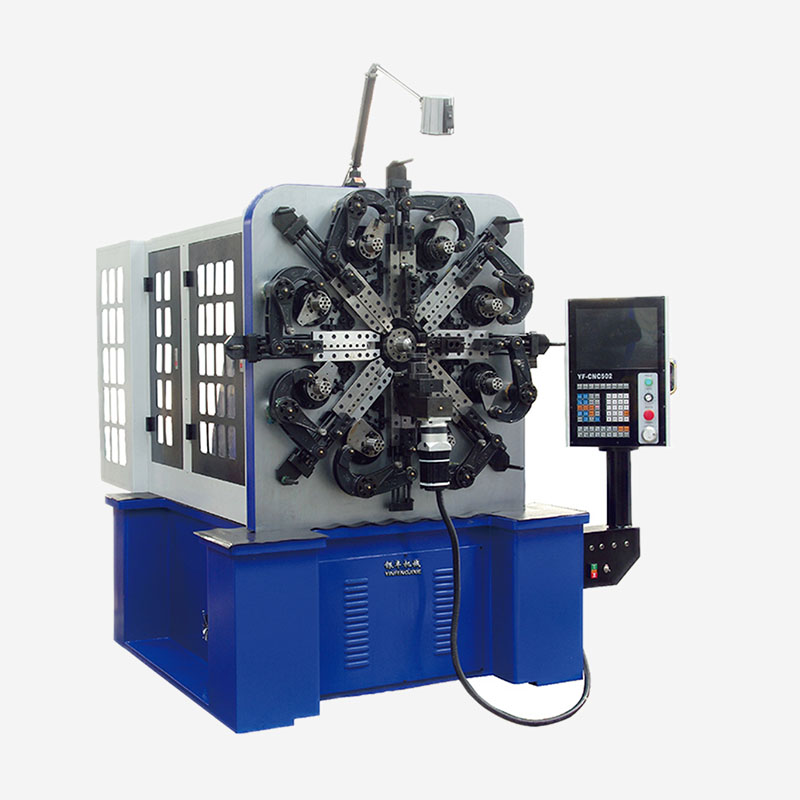

| Model | YF-CNC-8545 | |
| Diameter ofthe steel wire(mm) | Φ1.5-4.5mm(iron wire1.5-6.0mm) | |
| Input voltage | 380V±10%V50HZ (Customized) | |
| Max Wire Feed speed | 0-80m/min | |
| Max outer diameter of coiled spring | Manɸ110m | |
| Quantity of the wire feed wheels | 3 pairs | |
| Total power (kw) | 16.4 | |
| Number of axes | 5 | |
| Quantity of the wire feed wheels | 3 pairs | |
| Servo motor | Wire feeding | 5.5kw |
| WIre rotate | 2.9kw | |
| mandrel rotate | 1.5kw | |
| Spinner | 1.0kw | |
| Cam | 5.5kw | |
| Main Machine(L*W*H)(mm) | 1700*1900*2100 | |
| Net Weight of Machine (kg) | 2800 | |
1.Using Taiwan imported computer control system and servo motor.
2.The computer is in Chinses/English interface,easy to operation,accurate positioning,the computer can control 5-6 servo motors,
all can be synchronized or run separately.
3.The product has a precision detection tracking device,it can automatically shut down if find a substandard product.
4.The parameters such as outside diameter and angle can be modified at any moment according to the working status displayed on the screen.
5.The mechanical automatic lubricating oil supply design,to ensure the equipment movement for a long time.
After-Sales & Training
1. Our product is life-time warranty from B/L Date. Parts damaged during 12 months from B/L date will be replaced on the cost of the SELLER. But the carriage fee is borne by the buyer.
2. Seller provides the service for the buyer forever. Buyer can contact us by Skype, WhatsApp, Email and Telephone at any time. We provide 24h on-line service.
3. Buyer need mounting service and training abroad, all costs will be charged: visa, round flight tickets,boarding & lodging, labor charge of one engineer 150USD PER DAY.After receiving all the cost, seller willsend engineer to Buyer’s site.
4. Buyer need send 1-2 persons to Seller’s company for training. Training fee was borne by Seller. The flight ticket and the boarding & lodging expense should be borne by Buyer.
Tension Spring
Torsion Spring
Battery Compression Spring Redux Spring Double Wire Spring
Clothespin spring Zigzag Spring
Constant Spring
