| Model | YF-CNC-8320 | |
| Diameter of the steel wire(mm) | Φ0.4-2.0mm | |
| Number of axes | 3 | |
| Max. OD of spring(mm) | 60 | |
| Wire feeding speed(m/min) | 250(max) | |
| Total power (kw) | 5.8 | |
| Quantity of the wire feed wheels | 2 Pairs | |
| Servo motor | Wire feeding | 2.7kw |
| Pitch axis | 0.4kw | |
| Cam servo motor | 2.7kw | |
| Input voltage | 380V±10%V50HZ (Customized) | |
| Main Machine(L*W*H)(mm) | 900*900*1300 | |
| Net Weight of Machine (kg) | 460 | |
Manufacturable Products

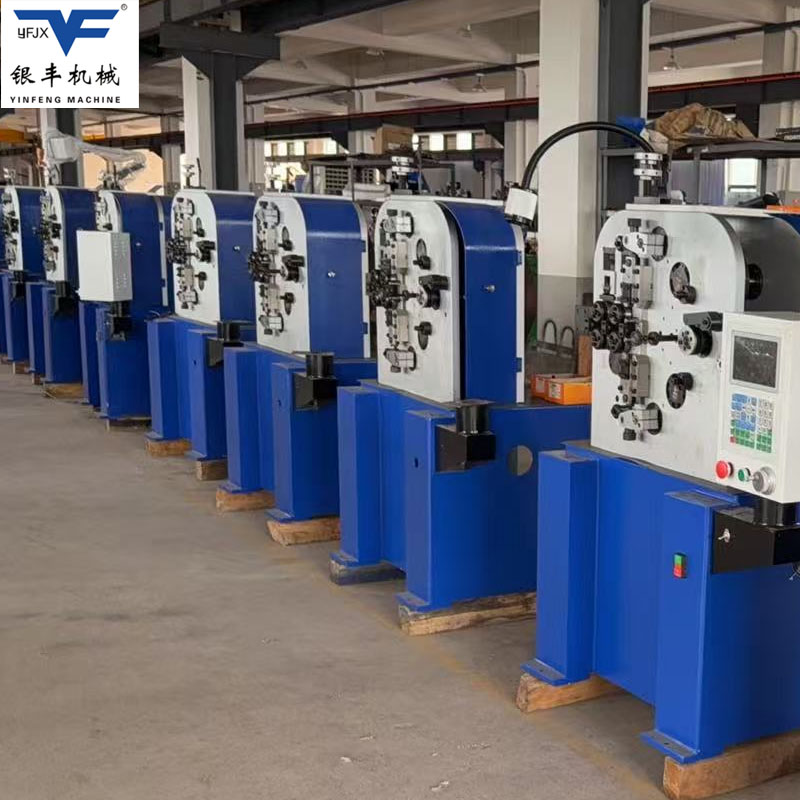

The YF-CNC-8320 is a three-axis CNC coiling machine for small standard compression springs made from Ø0.4–2.0 mm wire.
Typical manufacturable products include:
• Small cylindrical compression springs
• Electrical switch return springs
• Appliance button springs
• Lock mechanism compression springs
• Toy mechanism springs
• Small automotive component springs
• Consumer product compression springs
• Small industrial return springs
• Simple conical compression springs
• Basic variable-pitch compression springs
• Open-end compression springs
• Closed-end compression springs
• Closed-and-ground small compression springs
• General-purpose precision compression springs
Typical industries include electrical switches, appliances, locks, toys, consumer products, small automotive components and general mechanical assemblies.
The YF-CNC-8320 is optimized for efficient and economical production of small standard compression springs.
