| Model | YF-CNC-8630 | |
| Diameter of the wire(mm) | Φ1.0-3.0mm | |
| Number of axes | 6 | |
| Max. OD of spring(mm) | 50mm | |
| Length of the feeding wire | No limitation | |
| Wire feeding speed(m/min) | 90 | |
| Quantity of the wire feed wheels | 2pairs | |
| Rotation | Left or right | |
| Forming Way | Double points | |
| Servo Motor(kw) | Outside diameter servo power | 0.75kw*2 |
| Cutter servo power | 1.2kw*2 | |
| Pitch axis servo power | 0.4kw | |
| Wire feeding | 4.5kw | |
| Input voltage | 380V±10%V50HZ (Customized) | |
| Main Machine(L*W*H)(mm) | 1500*1000*1800 | |
| Net Weight of Machine (kg) | 800 | |
1.Controlled with six axis: wire feed axis ,cam axis ,up-cut blade axis ,down-cut blade axis and space axis .
2.The five axis can work single-step or synchronously .
3.Computer interface displayed in Chinese and English makes which the operation easy .
4.Equipped with right or left-handed winding blade rest .
5.The cutter can perform straight cut and twist cut .
6.The computer has software functions of automatic programming.
After-Sales & Training
1. Our product is life-time warranty from B/L Date. Parts damaged during 12 months from B/L date will be replaced on the cost of the SELLER. But the carriage fee is borne by the buyer.
2. Seller provides the service for the buyer forever. Buyer can contact us by Skype, WhatsApp, Email and Telephone at any time. We provide 24h on-line service.
3. Buyer need mounting service and training abroad, all costs will be charged: visa, round flight tickets,boarding & lodging, labor charge of one engineer 150USD PER DAY.After receiving all the cost, seller willsend engineer to Buyer’s site.
4. Buyer need send 1-2 persons to Seller’s company for training. Training fee was borne by Seller. The flight ticket and the boarding & lodging expense should be borne by Buyer.
Manufacturable Products

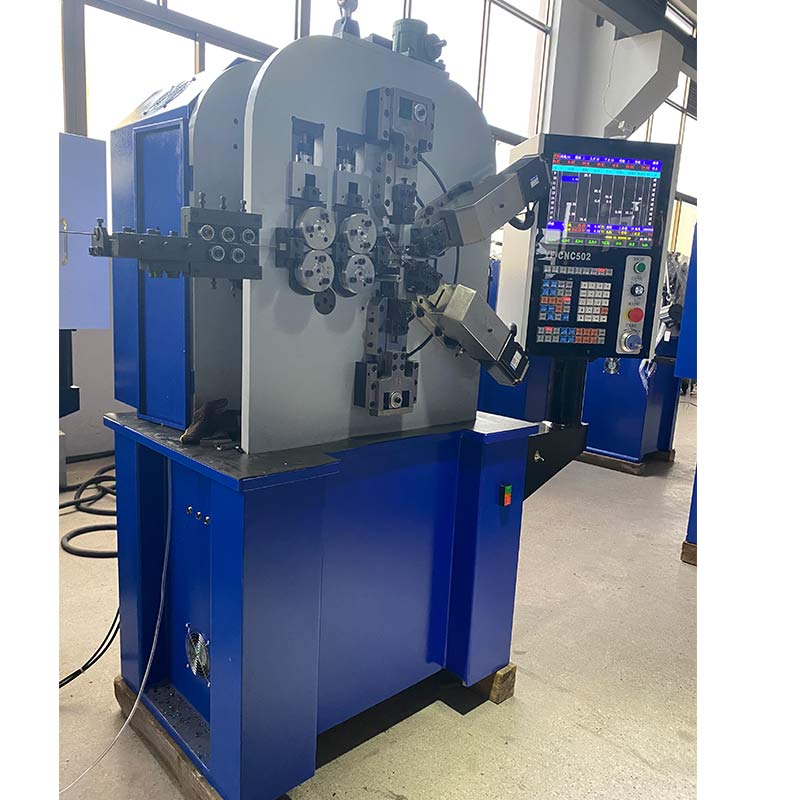

The YF-CNC-8630 is a six-axis precision coiling machine for compression springs made from Ø1.0–3.0 mm wire. It is suitable for diversified production requiring accurate pitch control and consistent spring dimensions.
Typical manufacturable products include:
• Precision automotive compression springs
• Electrical switch compression springs
• Appliance mechanism springs
• Office equipment return springs
• Industrial sensor springs
• Control valve springs
• Small pneumatic springs
• Precision actuator springs
• Medical equipment compression springs
• Lock mechanism springs
• Variable-pitch compression springs
• Fine conical compression springs
• Barrel-shaped precision springs
• Small cylindrical compression springs
• Closed-end precision springs
• Ground-end compression springs
Typical industries include automotive electronics, electrical switches, household appliances, office equipment, industrial sensors, control valves, medical equipment and precision mechanisms.
The YF-CNC-8630 emphasizes flexible production of precision springs with varied pitch and diameter requirements.
