What Is Spring Index?

Spring index is a critical design parameter used in the engineering and manufacturing of compression springs, extension springs, and torsion springs. It helps determine the relationship between the spring's coil diameter and wire diameter, influencing spring performance, durability, and manufacturability.

Understanding spring index allows engineers and manufacturers to design springs that are easier to produce, perform more reliably, and achieve longer service life.

What Is Spring Index?

Spring index is the ratio of a spring's mean coil diameter to its wire diameter.

It indicates how tightly or loosely a spring is wound and serves as an important factor in spring design calculations.

A spring with a low index has relatively thick wire and tight coils, while a spring with a high index has thinner wire and larger coil diameters.

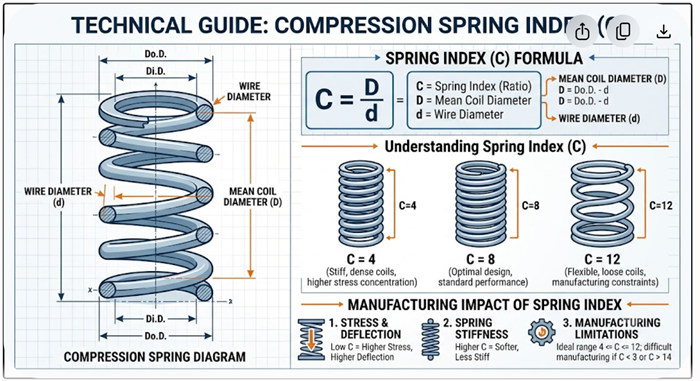

Spring Index Formula

Spring index is calculated using:

C = \frac{D}{d}

Where:

• C = Spring Index

• D = Mean Coil Diameter

• d = Wire Diameter

The mean coil diameter is typically calculated as:

D = OD - d

Where:

• OD = Outside Diameter of the spring

• d = Wire Diameter

Example of Spring Index Calculation

Suppose a compression spring has:

• Mean Coil Diameter = 20 mm

• Wire Diameter = 4 mm

The spring index is:

C = 20 ÷ 4 = 5

Therefore, the spring index is 5.

Why Is Spring Index Important?

Spring index affects multiple aspects of spring performance and manufacturing.

1. Manufacturability

A spring with an appropriate index is easier to manufacture consistently.

Very low spring indexes can make coiling difficult, while very high indexes can lead to instability during production.

2. Stress Distribution

Spring index influences how stress is distributed throughout the wire during operation.

Poor index selection may create stress concentrations that reduce spring life.

3. Spring Strength

The index affects the amount of stress generated under load.

Proper design helps maximize strength while minimizing the risk of failure.

4. Fatigue Life

A well-designed spring index contributes to longer fatigue life and improved durability under repeated loading cycles.

Recommended Spring Index Range

In most compression spring applications:

• Spring Index below 4 = Difficult to manufacture

• Spring Index between 4 and 12 = Preferred design range

• Spring Index above 12 = Easier to coil but may become unstable

Many spring manufacturers consider a spring index between 6 and 10 to be ideal for balancing manufacturability and performance.

Low Spring Index vs High Spring Index

Low Spring Index

Characteristics:

• Thick wire

• Small coil diameter

• Higher stress concentration

• More difficult manufacturing

Advantages:

• Compact design

• Higher load capacity

Disadvantages:

• Increased production difficulty

• Higher tooling wear

High Spring Index

Characteristics:

• Thin wire

• Larger coil diameter

• Lower stress concentration

Advantages:

• Easier manufacturing

• Better flexibility

Disadvantages:

• Potential instability

• Greater risk of buckling in some applications

Spring Index and CNC Spring Machines

Modern CNC spring machines can manufacture springs across a wide range of spring indexes with exceptional accuracy.

Advanced CNC controls allow precise adjustment of:

• Wire feed

• Coil diameter

• Pitch

• Number of active coils

This enables manufacturers to consistently produce springs with tight tolerances and optimized spring indexes.

Common Problems Related to Incorrect Spring Index

Choosing an improper spring index can lead to:

Excessive Stress

Low spring indexes can create localized stress concentrations that increase the likelihood of failure.

Manufacturing Difficulties

Tightly wound springs may require special tooling and setup procedures.

Spring Instability

High spring indexes may result in spring distortion, tangling, or buckling during operation.

Reduced Service Life

Poor index selection can shorten fatigue life and reduce product reliability.

Spring Index vs Spring Rate

These two terms are often confused but represent different spring characteristics.

Spring Index

Measures the relationship between coil diameter and wire diameter.

Spring Rate

Measures the force required to compress or extend the spring by a specific distance.

Both parameters are essential for successful spring design.

Conclusion

Spring index is a fundamental spring design parameter that influences manufacturability, stress distribution, durability, and overall spring performance. By calculating and optimizing the spring index, engineers can create springs that are easier to manufacture, more reliable, and better suited to their intended applications.

For most spring designs, maintaining a spring index within the recommended range helps achieve the best balance between production efficiency and long-term performance.
