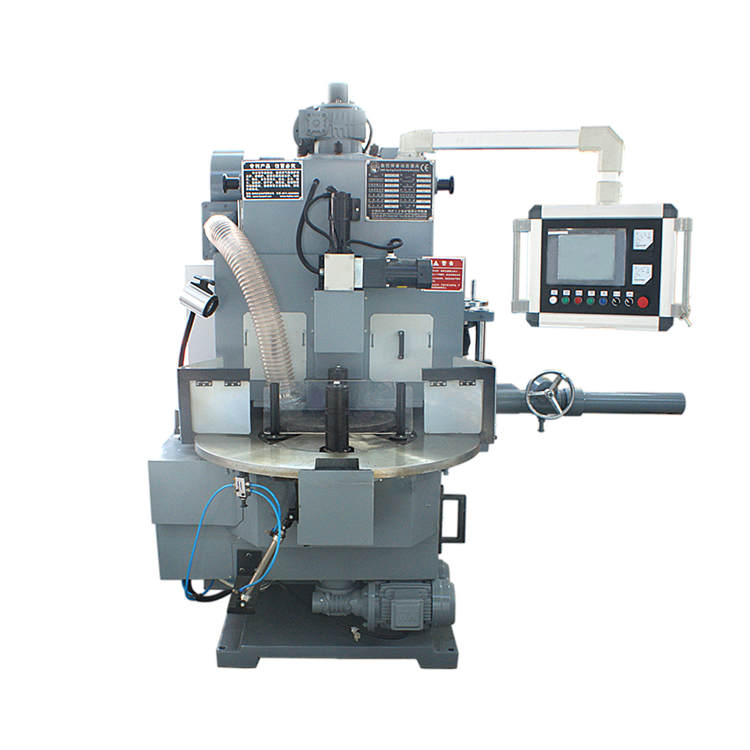

The grinding machine uses 2 upright grinding wheels, the springs are set on the feeding plate. Feeding speed of the upper grinding wheel is adjustable, in continuous and stepping feeding, allows the spring reach a preset height, obtain a maxi grinding capacity according to the pressure used. This machine has the function of self-compensation, self reset, alarm. Using man-machine interaction, we can make programming via the screen which makes it easy to use and increase the productivity.
Mode
YF180-6B
YF180-6B-S
YF250-9B
YF250-9B-S
YF400-9B
YF600-10B
Specification of grinding wheel(mm)
∅400*55
∅400*50*∅203
∅450*65
∅450*65*∅50
∅450*65*∅50
∅450*65
Diameter of feeding plate(mm)
∅580
∅420
∅740
∅580
∅740
∅740
Wire diameter of grinding spring(mm)
∅0.8-∅6
∅0.8-∅6
∅1-∅9
∅1-∅9
∅1-∅9
∅1-∅10
Outside diameter of grinding sphing(mm)
∅8-∅80
∅8-∅80
∅10-∅100
∅10-∅100
∅10-∅100
∅10-∅100
Height of grinding spring(mm)
10-180
10-180
20-250
20-250
20-400
300-600
Outside dimensions(mm)
2050*1660*2120
2050*2060*2120
2215*1900*2400
2215*2000*2850
2215*2265*2400
2215*2265*2400
Motor power
Upper grinding wheel motor(kw)
4
4
5.5
5.5
7.5
7.5
Under grinding wheel motor(kw)
4
4
5.5
5.5
7.5
7.5
Feeding plate motor(kw)
1.5
1.5
1.5
1.5
1.5
1.5
Change feeding plate motor(kw)
/
1.5
/
1.5
/
/
Elevating motor of upper grinding wheel(kw)
1.5
1.5
1.5
1.5
1.5
1.5
Elevating motor of under grinding wheel(kw)
0.18
0.18
0.18
0.18
0.18
0.18
Biowor(kw)
1.5
1.5
1.5
1.5
1.5
1.5*2
Compensated motor ofuppor grinding wheel(kw)
0.14
0.14
0.14
0.14
0.14
0.14
Total power(kw)
12.82
14.32
15.82
17.32
19.82
21. 32
Rotate speed of feed plate (r/min)
Adjustable
Adjustable
Adjustable
Adjustable
Adjustable
Adjustable
Rotate speed of grinding wheel
1450
1450
1450
1450
1450
1450
Displacement distance of grindiing wheel
Upder grinding wheel（mm）
180
180
250
250
250
250
Under grinding wheel（mm）
40
40
50
50
50
50
Working accuracy
Verticality
0.025Ho
0.025Ho
0.025Ho
0.025Ho
0.025Ho
0.025Ho
Roughness（Ra）
≤12.5
≤12.5
≤12.5
≤12.5
≤12.5
≤12.5
Power source
Three phase 380A50hz
Three phase 380A50hz
Three phase 380A50hz
Three phase 380A50hz
Three phase 380A50hz
Three phase 380A50hz
Net weight of the machine
2200
2500
2800
3500
3500
4500
MODE
YF250-12B
YF250-12B-S
YF300-12B
YF400-12B
YF500-12B
Specification of grinding wheel(mm)
∅660*100*∅170
∅660*100*∅170
∅660*100*∅170
∅660*100*∅170
∅660*100*∅170
Diameter of feeding plate(mm)
∅740
∅740
∅740
∅740
∅740
Wire diameter of grinding spring(mm)
∅3-∅12
∅3-∅12
∅3-∅12
∅3-∅12
∅3-∅12
Outside diameter of grinding sphing(mm)
∅20-∅130
∅20-∅130
∅20-∅130
∅20-∅130
∅20-∅130
Height of grinding spring(mm)
20-250
20-250
60-300
150-400
200-500
Outside dimensions(mm)
2600X2100X2800
2600X2100X2800
2600X2100X2800
2600X2100X3060
2600X2100X 3100
Motor power
Upper grinding wheel motor(kw)
12.5
12.5
12.5
12.5
12.5
Under grinding wheel motor(kw)
12.5
12.5
12.5
12.5
12.5
Feeding plate motor(kw)
3
3
3
3
3
Change feeding plate motor(kw)
/
1.5
/
/
/
Elevating motor of upper grinding wheel(kw)
2.2
2.2
2.2
2.2
2.2
Elevating motor of under grinding wheel(kw)
0.37
0.37
0.37
0.37
0.37
Biowor(kw)
1.5*2
1.5*2
1.5*2
1.5*2
1.5*2
Compensated motor ofuppor grinding wheel(kw)
0.14
0.14
0.14
0.14
0.14
Total power(kw)
33.71
35.21
33.71
33.71
33.71
Rotate speed of feed plate (r/min)
Adjustable
Adjustable
Adjustable
Adjustable
Adjustable
Rotate speed of grinding wheel
965
965
965
965
965
Displacement distance of grindiing wheel
Upder grinding wheel（mm）
250
250
250
250
250
Under grinding wheel（mm）
70
70
70
70
70
Working accuracy
Verticality
0.025Ho
0.025Ho
0.025Ho
0.025Ho
0.025Ho
Roughness（Ra）
≤12.5
≤12.5
≤12.5
≤12.5
≤12.5
Power source
Three phase 380A50hz
Three phase 380A50hz
Three phase 380A50hz
Three phase 380A50hz
Three phase 380A50hz
Net weight of the machine
5500
5500
5500
6000
6000
