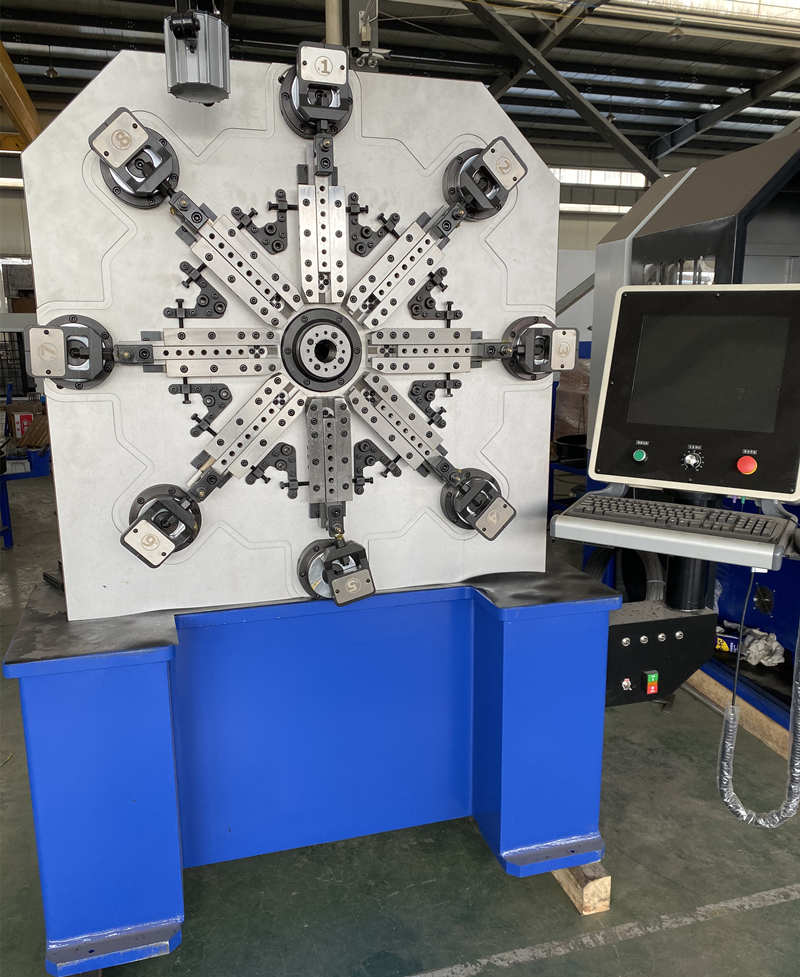

YF-CNC-1045-1145

10-12 Axis Diameter ofthe steel wire:Φ1.5-4.5mm
  • Spinner Device Axis

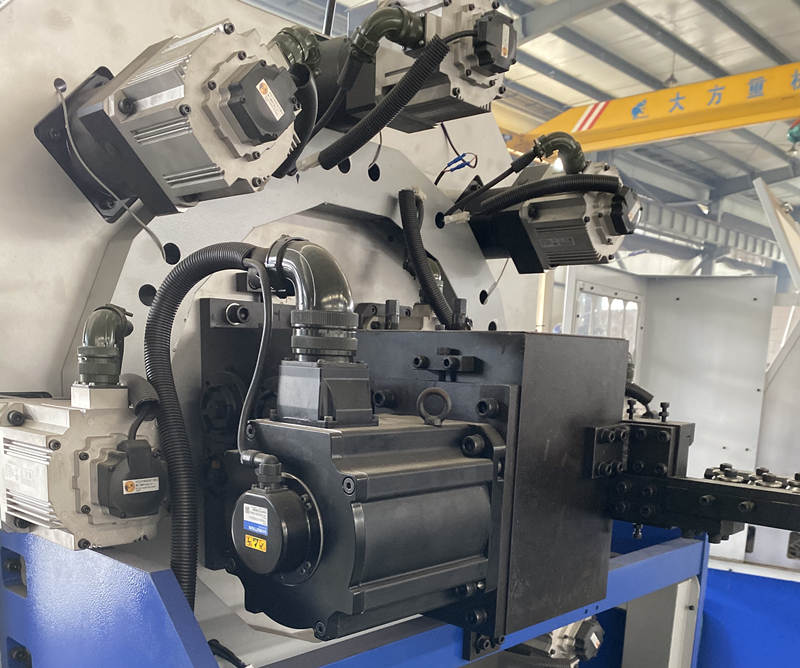

  • Servo Motor Cutter Axis
  • Content of product features 5
  • Sharpening Device Axis
CONTACT US
X


ModelYF-CNC-1045YF-CNC-1145
Diameter of the steel wire(mm)1.2-4.5mm1.2-4.5mm
Max Wire Feed instruction value10000.00mm10000.00mm
Min Wire Feed instruction value0.01mm0.01mm
Max Wire Feed speed100 m/min100 m/min
Max Wire Feed lengthInfinite lengthInfinite length
Input voltage380V±10%V50HZ (Customized)380V±10%V50HZ (Customized)
Program data storageMore than 2000 pcsMore than 2000 pcs
Total power (kw)16.317.8
Number of axes10 axis11 axis
Quantity of the wire feed wheels3 pairs3 pairs
Servo motorWire feeding5.5kw5.5kw
mandrel rotate1.2kw1.2kw
SpinnerOptional1.0kw
Slide1.2kw*81.2kw*8
Main Machine(L*W*H)(mm)1900*1100*20001900*1100*2000
Net Weight of Machine (kg)21002150


1.Using Taiwan imported computer control system and servo motor.


2.The computer is in Chinses/English interface,easy to operation,accurate positioning,the computer can control 10 -12 servo motors,all can be synchronized or run separately.


3.The product has a precision detection tracking device,it can automatically shut down if find a substandard product.


4.The parameters such as outside diameter and angle can be modified at any moment according to the working status displayed on the screen.


5.The mechanical automatic lubricating oil supply design,to ensure the equipment movement for a long time.





Optional Integrated function on machine


After-Sales & Training

1. Our product is life-time warranty from B/L Date. Parts damaged during 12 months from B/L date will be replaced on the cost of the SELLER. But the carriage fee is borne by the buyer.


2. Seller provides the service for the buyer forever. Buyer can contact us by Skype, WhatsApp, Email and Telephone at any time. We provide 24h on-line service.


3. Buyer need mounting service and training abroad, all costs will be charged: visa, round flight tickets,boarding & lodging, labor charge of one engineer 150USD PER DAY.After receiving all the cost, seller willsend engineer to Buyer’s site.


4. Buyer need send 1-2 persons to Seller’s company for training. Training fee was borne by Seller. The flight ticket and the boarding & lodging expense should be borne by Buyer.


Tension Spring



Torsion Spring

Battery Compression Spring           Redux Spring                                            Double Wire Spring



Clothespin spring                   Zigzag Spring


                                                                                 Constant Spring



Wire Forming Machine Production product video
YF-CNC-1045
