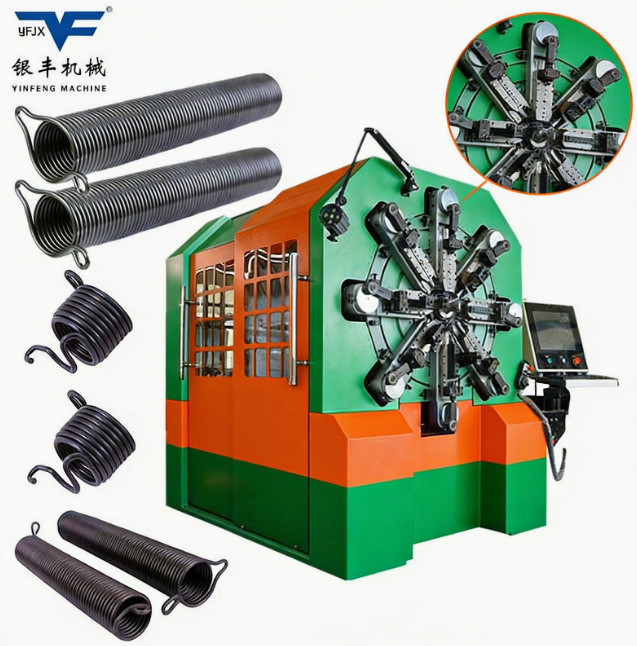

Yinfeng Spring Equipment Factory specializes in high-performance 3-8mm Camless Spring Coiling Machines designed for rolling door spring production. Featuring innovative dual-coiling one-step forming technology, this machine empowers customers to achieve efficient, precise, and cost-effective spring manufacturing. Tailored for the rolling door spring industry, it eliminates secondary processing, significantly reducing production costs while enhancing product consistency and competitiveness.
| Model | YF-CNC-1280 | |
| Diameter of the steel wire(mm) | Φ3.0-8.0mm | |
| Max Wire Feed instruction value | 10000.00mm | |
| Min Wire Feed instruction value | 0.01mm | |
| Max Wire Feed speed | 0-100 m/min | |
| Max Wire Feed length | Infinite length | |
| Input voltage | 380V±10%V50HZ (Customized) | |
| Program data storage | More than 2000 pcs | |
| Total power (kw) | 59.5 | |
| Numberof axes | 12 axis | |
| Quantity of the wire feed wheels | 4pairs | |
| Servo motor | Wire feeding | 15kw |
| WIre rotate | 5.5kw | |
| mandrel rotate | 1.5kw | |
| Spinner | 1.5kw | |
| Slide | 4.5kw*8 | |
| Main Machine(L*W*H)(mm) | 2500*3100*2500 | |
| Net Weight of Machine (kg) | 5800 | |
Core Advantages
Dual-Coiling One-Step Forming Technology
Completes synchronized coiling of both spring ends in a single operation, eliminating secondary processing and saving labor, time, and equipment costs.
Precise control over coiling angles and turns ensures compliance with high-accuracy standards, meeting the rigorous mechanical demands of rolling door springs.
Camless Design, Flexible & Efficient
Replaces traditional cam mechanisms with an intelligent servo-driven system, enabling rapid parameter adjustments (wire diameter, outer diameter, coil count, etc.) via programming to accommodate diverse specifications.
Reduces setup time by 70%, ideal for small-batch, multi-variant orders and agile response to market needs.
Smart Control System
Equipped with a high-precision HMI (Human-Machine Interface) for visual parameter settings and storage, ensuring user-friendly operation.
Real-time production monitoring and automatic fault diagnosis minimize downtime and ensure stable performance.
High-Strength Durability
Robust cast iron and alloy frame enhances pressure and shock resistance, supporting continuous production of 3-8mm medium-to-large wire diameter springs.
Core components undergo special heat treatment, extending wear-resistant lifespan by 50% and reducing long-term maintenance costs.
