Customized M2-M24 CNC Stainless Steel Helicoils Spring Making Machine

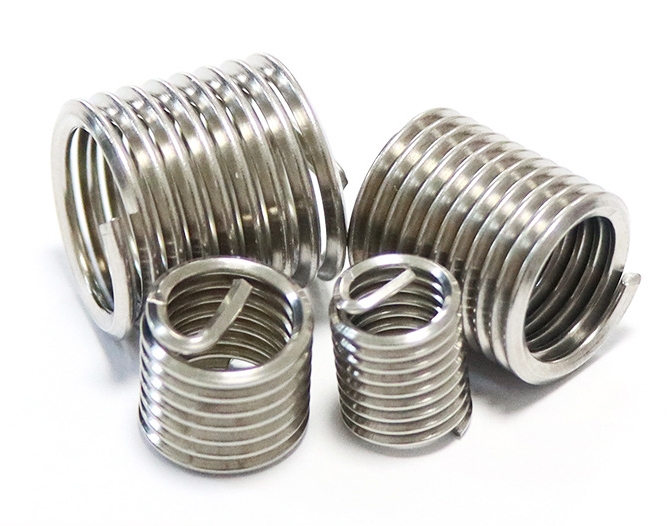

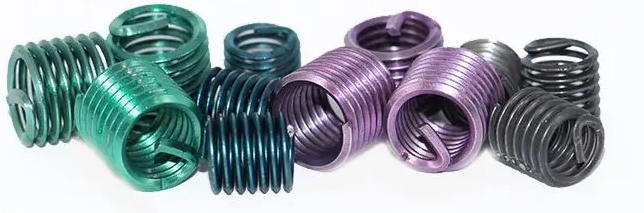

Customized M2-M24 Helicoils Spring
contact us
CONTACT US
X
Parameter Manufacturable Video
ModelYF-5M8YF-5M24YF-6M8YF-6M24
Production scopeM3-M8M10-M24M3-M8M10-M24
Production speed20-30 Pieces/per minute15-25 Pieces/per minute20-30 Pieces/per minute15-25 Pieces/per minute
Diameter of the wire(mm)Φ20mmΦ25mmΦ20mmΦ25mm
Quantity of the wire feed wheels1pair2 Pairs1pair2 Pairs
Number of axes5 axes5 axes6 axes6 axes
Slot machining motor X-axis0.4KW0.4KW0.4KW0.4KW
Wire feeding motor Y-axis0.4KW0.4KW0.4KW0.4KW
Pitch  motor Z-axis0.4KW0.4KW0.4KW0.4KW
coiling motor A-axis0.4KW0.75KW0.4KW0.75KW
Cutter motor B-axis0.4KW0.4KW0.4KW0.4KW
Motor C-axis--0.4KW0.4KW
Wire Decoiler60KG60KG60KG60KG
Input voltage380V±10%V50HZ (Customized)380V±10%V50HZ (Customized)380V±10%V50HZ (Customized)380V±10%V50HZ (Customized)
Total power (kw)3.0KW3.5KW3.5KW4.0KW
Machine dimension(mm)1050*850*16501200*1000*16501050*850*16501200*1000*1650
Equipment Packaging Size(mm)1220*820*12801410*900*12801220*820*12801410*900*1280
Net Weight of Machine (kg)360KG420KG400KG460KG
