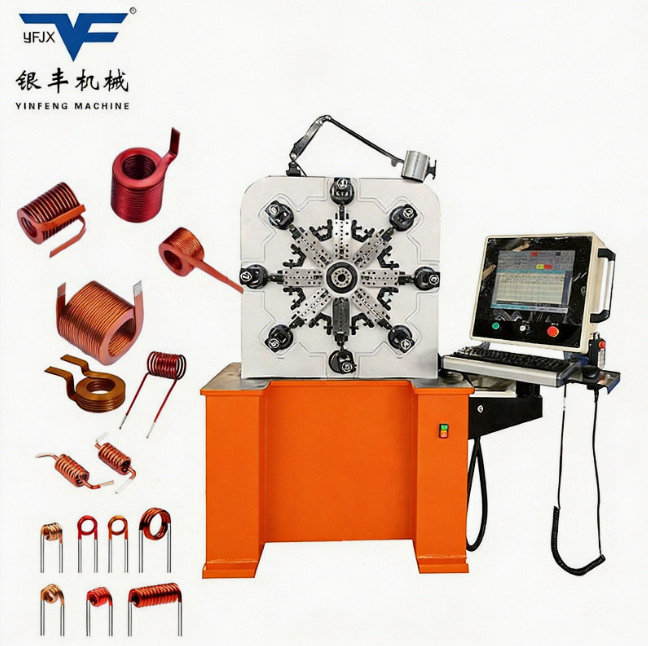

Toy PCB High Quality Spiral Stainless Steel Spring Copper Antenna Springs Flat Wire Winding Machine. Lat Wire Inductor New Energy Wire Winding Forming Machine

Solution for PCB Springs, Antenna Springs & New Energy Coil Forming

Yinfeng Spring Equipment Factory introduces an advanced flat wire CNC spring forming machine, designed for high-precision manufacturing of:

• Toy PCB high-quality spiral stainless steel springs

• Copper antenna springs

• Flat wire inductors

• New energy coils

This solution extends traditional spring machine capabilities into electronics and energy applications, enabling efficient and stable forming of complex flat wire components.

1. Application Overview

This machine is widely used in:

🎯 Electronic Components

• PCB contact springs

• Battery connection springs

• Precision conductive springs

📡 Antenna Systems

• Copper antenna springs

• Signal transmission coils

• Miniature spiral antennas

⚡ New Energy Industry

• Flat wire inductors

• Energy storage coils

• EV-related electromagnetic components

2. Core Processing Capability

1️⃣ Flat Wire Forming Technology

Unlike traditional round wire spring machines, this equipment supports flat (rectangular) wire forming:

• Maintains edge alignment and surface integrity

• Prevents twisting and deformation

• Ensures uniform pitch and shape consistency

Ideal for high-end electrical and electronic applications.

2️⃣ High-Precision Micro Spring Production

Designed for small-size, high-precision parts:

• Stable forming of micro springs

• Tight tolerance control

• Smooth surface finish without damage

Perfect for PCB and miniature electronic components.

3️⃣ Multi-Function CNC Control

Advanced CNC system enables:

• Coil winding, bending, and cutting in one process

• Complex geometry forming

• Quick program switching for different products

Improves flexibility for multi-product manufacturing.

4️⃣ Compatible with Multiple Materials

Supports a wide range of conductive and elastic materials:

• Stainless steel flat wire

• Copper wire

• Phosphor bronze

• Alloy conductive materials

Ensures both mechanical strength and electrical performance.

5️⃣ Stable Forming for Inductors & Coils

Optimized for electromagnetic components:

• Uniform coil spacing

• Stable inductance performance

• Consistent batch quality

Meets the strict requirements of new energy and electronic industries.

3. Key Advantages

• ✅ One machine for springs, antenna coils, and inductors

• ✅ Specialized for flat wire forming

• ✅ High precision for electronic-grade components

• ✅ Excellent consistency for mass production

• ✅ Flexible for multiple industries and applications

4. Customization Capability

Yinfeng Spring Equipment Factory offers tailored solutions:

• Product structure analysis

• Forming process development

• Custom tooling design

• Automated production integration

5. Conclusion

The Yinfeng flat wire CNC spring machine breaks the boundary between traditional spring forming and precision electronic coil manufacturing, providing a highly efficient and reliable solution for modern industries such as electronics, telecommunications, and new energy.
