Designed for manufacturing heavy-duty double torsion springs, agricultural tine springs, large extension springs, automotive seat torsion springs, industrial torsion springs, and other large custom spring products.

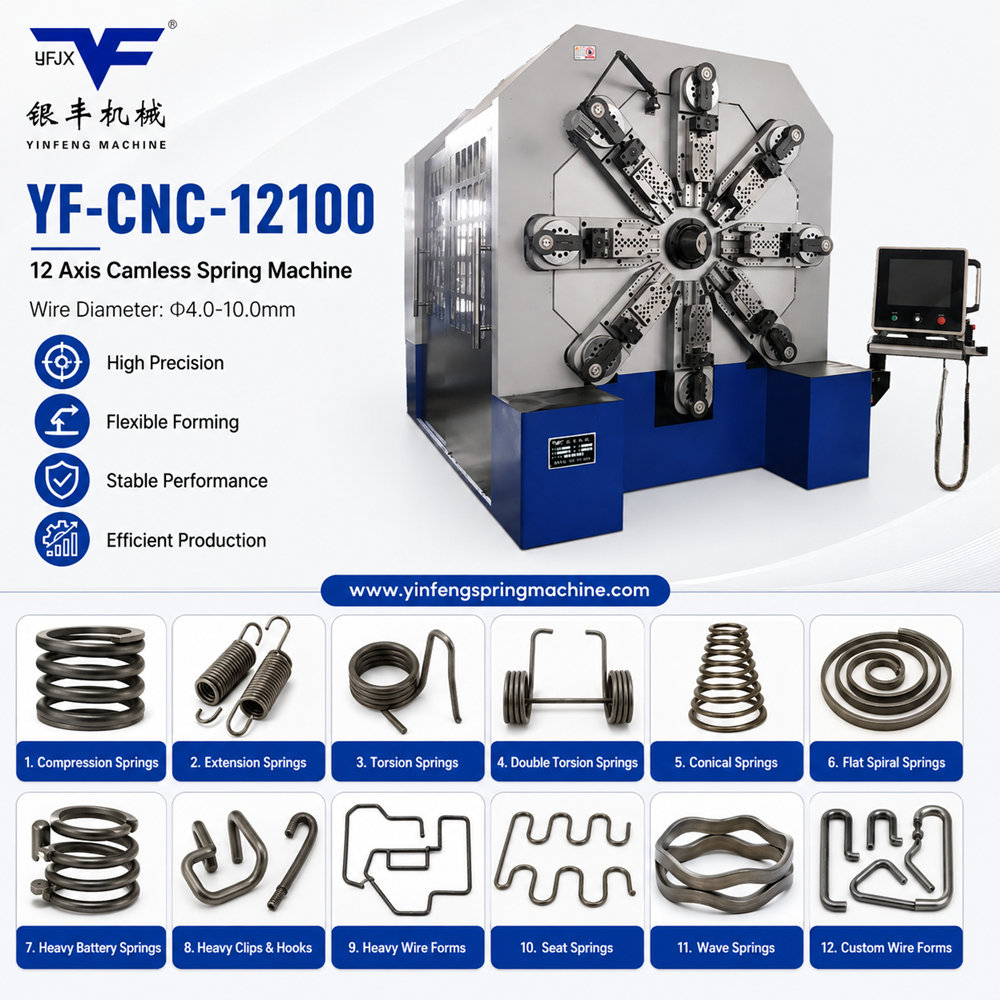

The 12100 Heavy-Duty CNC Camless Spring Forming Machine is engineered for manufacturers producing large, high-load, and structurally complex spring products from Ø4.0 mm to Ø10.0 mm wire.
Equipped with a powerful 12-axis servo-controlled system, four pairs of wire feed wheels, an independent wire rotation servo, and eight high-power forming slides, the 12100 provides the forming force, stability, and flexibility required for demanding large-spring production.
Compared with spring machines designed for smaller wire diameters, the 12100 offers stronger feeding power, greater forming torque, and better control of springback, leg angles, hook shapes, and special spring ends.
The 12100 is optimized for spring manufacturers producing large products that require high forming force and precise control of complex geometries.
Typical products include:
Heavy-Duty Double Torsion Springs
Agricultural Tine Springs
Large Extension Springs
Automotive Seat Torsion Springs
Heavy-Duty Torsion Springs
Extension Springs with Custom Hooks
Custom-Shaped Wire Springs
Industrial Spring Clips
Multi-Strand Wire Double Torsion Springs
Heavy-Duty Compression Springs with Formed Ends
These products are commonly used in automotive seating systems, agricultural machinery, industrial equipment, construction machinery, heavy hardware, and mechanical assemblies.
Large double torsion springs require accurate control of two coil bodies, the central connecting section, leg angles, and left-right symmetry.
The 12100 uses independent servo-controlled forming movements to help manufacturers control:
Coil diameter consistency
Center spacing
Coil symmetry
Leg length and angle
Forming sequence
Springback compensation
This makes the machine especially suitable for producing large double torsion springs used in industrial mechanisms, agricultural equipment, and heavy mechanical assemblies.
Agricultural tine springs are subjected to repeated impact, vibration, and high working loads. Their production requires strong wire feeding, stable coiling, and accurate forming of long spring arms.
The 12100 is suitable for manufacturing agricultural spring products such as:
Cultivator tine springs
Harrow tine springs
Hay rake springs
Pickup tine springs
Seed drill springs
Agricultural return springs
Its heavy-duty servo configuration provides the power required to form thick spring wire while maintaining stable product dimensions.
Large extension springs often require strong coil bodies and precisely formed end hooks.
The 12100 can be used to manufacture:
Large industrial extension springs
Agricultural extension springs
Machinery return springs
Door and gate extension springs
Equipment tension springs
Extension springs with custom hooks
The camless forming system allows operators to program different hook shapes, end lengths, and spring-body dimensions according to customer drawings.
Automotive seat torsion springs require consistent torque, precise leg positioning, and reliable repeatability.
Typical applications include:
Seat adjustment mechanisms
Seat recliner systems
Seat locking assemblies
Headrest mechanisms
Folding seat systems
Automotive interior hardware
The 12100 provides multi-axis control for forming spring legs, coil bodies, and complex end geometries used in automotive seating components.
Heavy-duty torsion springs are widely used in industrial machinery, construction equipment, agricultural systems, and mechanical assemblies.
The machine is suitable for producing:
Large single torsion springs
Industrial return torsion springs
Heavy door torsion springs
Machinery torsion springs
Lever mechanism springs
Custom-angle torsion springs
Independent servo control helps maintain accurate coil geometry and leg positioning throughout production.
Multi-strand wire double torsion springs require greater forming power and careful control of the wire bundle during feeding and forming.
The 12100's heavy-duty feeding system and high-power forming slides make it suitable for these demanding spring structures.
Key production requirements include:
Stable multi-strand feeding
Consistent coil formation
Accurate dual-coil symmetry
Controlled center spacing
Precise arm and leg positioning
These springs are often used in high-load mechanisms where increased strength and fatigue resistance are required.
Some large compression springs require formed ends, extended legs, hooks, or special terminal structures instead of standard closed ends.
The 12100 can manufacture heavy compression springs with:
Formed wire ends
Extended end sections
Bent terminal legs
Custom hook ends
Variable pitch
Conical or irregular coil bodies
This flexibility makes the machine suitable for custom industrial spring applications that cannot be produced efficiently on standard compression spring coiling machines.
Processing wire up to Ø10.0 mm creates significantly greater forming resistance than small-wire spring production.
Large spring manufacturing requires:
Higher wire feeding force
Greater servo torque
Stronger wire gripping
More rigid machine construction
Stable tool positioning
Better springback compensation
Accurate multi-axis synchronization
Reliable continuous production
The 12100 is designed specifically to meet these heavy-duty production requirements.
The 12100 combines multiple high-power servo axes to control the complete spring-forming process.
Key servo configurations include:
15 kW wire feeding servo
5.5 kW wire rotation servo
1.5 kW mandrel rotation servo
2.7 kW spinner servo
Eight 5.5 kW forming slide servos
This architecture allows the machine to coordinate feeding, coiling, rotation, leg forming, hook forming, end shaping, and cutting according to the programmed production sequence.
12-axis CNC camless spring forming system
Processes spring wire from Ø4.0–10.0 mm
Designed for large and heavy-duty spring production
15 kW high-torque wire feeding servo motor
Four pairs of heavy-duty wire feed wheels
Independent 5.5 kW wire rotation servo
1.5 kW mandrel rotation servo
2.7 kW spinner servo
Eight 5.5 kW servo-controlled forming slides
Maximum wire feed speed up to 100 m/min
More than 2,000 production programs can be stored
Fast changeover without replacing mechanical cams
English interface and customized language service available
| Specification | 12100 |
|---|---|
| Model | 12100 |
| Wire Diameter | Ø4.0–10.0 mm |
| Max. Wire Feed Instruction Value | 10000.00 mm |
| Min. Wire Feed Instruction Value | 0.01 mm |
| Max. Wire Feed Speed | 0–100 m/min |
| Max. Wire Feed Length | Infinite Length |
| Input Voltage | 380V ±10%, 50Hz (Customized) |
| Program Data Storage | More Than 2,000 Programs |
| Total Power | 68.7 kW |
| Number of Axes | 12 Axis |
| Quantity of Wire Feed Wheels | 4 Pairs |
| Wire Feeding Servo Motor | 15 kW |
| Wire Rotation Servo Motor | 5.5 kW |
| Mandrel Rotation Servo Motor | 1.5 kW |
| Spinner Servo Motor | 2.7 kW |
| Forming Slide Servo Motor | 5.5 kW × 8 |
The 12100 can process various heavy-duty spring wire materials within its specified capacity, including:
High Carbon Spring Steel Wire
Oil-Tempered Spring Wire
Chrome Silicon Spring Steel
Chrome Vanadium Spring Steel
Stainless Steel Spring Wire
Alloy Spring Steel Wire
High-Tensile Spring Steel Wire
Actual production capability depends on wire hardness, tensile strength, spring dimensions, product geometry, and tooling configuration.
The 12100 is suitable for manufacturers serving:
Agricultural Machinery
Automotive Seating Systems
Industrial Equipment
Construction Machinery
Mining Machinery
Heavy Hardware
Mechanical Assemblies
Custom Spring Manufacturing
The machine is specifically configured for large-diameter spring wire and demanding heavy-duty spring products.
Its multi-axis control helps maintain coil symmetry, center spacing, and precise leg geometry in large double torsion springs.
The spinner, wire rotation, and forming slides support large extension springs with custom hooks and compression springs with formed ends.
The machine can produce agricultural tine springs and automotive seat torsion springs requiring high strength and repeatable geometry.
Spring programs and tool movements can be modified digitally, reducing the time required to develop special spring structures.
More than 2,000 programs can be stored and reused, helping manufacturers reduce setup time for repeat orders.
Yinfeng provides professional CNC spring forming solutions based on customer drawings, spring materials, wire diameters, and production requirements.
Our support includes:
Spring Drawing Evaluation
Machine Selection Consultation
Sample Production Testing
Tooling Configuration Guidance
Factory Acceptance Testing
Installation Guidance
Programming Training
English Control Interface
Customized Language Service
Spare Parts Supply
Online Technical Support
Professional After-Sales Service
The 12100 processes spring wire from Ø4.0 mm to Ø10.0 mm.
It is especially suitable for heavy-duty double torsion springs, agricultural tine springs, large extension springs, automotive seat torsion springs, heavy industrial torsion springs, multi-strand wire double torsion springs, and large compression springs with formed ends.
Yes. The camless forming system can create different hook shapes, end lengths, and special terminal structures according to the spring drawing.
Yes. Its powerful feeding and forming configuration is suitable for thick-wire agricultural springs with long arms and demanding working loads.
Yes. Independent servo control helps manage dual-coil symmetry, center spacing, leg positioning, and complex forming sequences.
Yes. The CNC control system can store more than 2,000 production programs for faster repeat production.
Yes. English is available, and Yinfeng can provide customized control-system languages according to customer requirements.
The 12100 Heavy-Duty CNC Camless Spring Forming Machine is designed for manufacturers producing large, high-strength, and structurally complex spring products from Ø4.0–10.0 mm wire.
With its powerful 12-axis servo system, four pairs of wire feed wheels, independent wire rotation, upgraded spinner control, and eight heavy-duty forming slides, it is especially suitable for heavy-duty double torsion springs, agricultural tine springs, large extension springs, automotive seat torsion springs, industrial torsion springs, multi-strand wire springs, and heavy compression springs with formed ends.
For manufacturers focused on large spring production, the 12100 provides the forming power, flexibility, and production stability required for demanding industrial applications.
The YF-CNC-12100 is Yinfeng’s maximum-capacity CNC camless spring forming machine, designed for manufacturers producing large and high-load spring components from Ø4.0–10.0 mm wire.
With its high-torque servo-controlled forming system, coordinated multi-axis control and heavy-duty mechanical structure, the machine supports large torsion springs, double torsion springs, extension springs, compression springs and complex spring components requiring high forming force and stable repeatability.
The YF-CNC-12100 is suitable for heavy industrial applications including agricultural machinery, automotive systems, construction equipment, transportation equipment and industrial machinery.
The YF-CNC-12100 can manufacture large and heavy-duty spring components, including:
Heavy-duty torsion springs
Large double torsion springs
Large extension springs
Heavy-duty extension springs with customized hooks
Large compression springs
Agricultural tine springs
Automotive seat torsion springs
Industrial return springs
Heavy machinery springs
Long-arm torsion springs
Large mechanical springs
Custom-shaped heavy wire springs
Complex three-dimensional spring components
Final manufacturability depends on wire diameter, material strength, spring geometry, coil diameter, spring load requirements, dimensional tolerance and tooling configuration.
The YF-CNC-12100 is designed for producing large torsion springs requiring high forming force, accurate leg positioning and stable torque performance.
Heavy industrial torsion springs
Large machinery return springs
Automotive seat torsion springs
Agricultural equipment torsion springs
Construction equipment springs
Heavy-duty hinge springs
Mechanical linkage springs
The coordinated servo axes control coil forming, wire rotation, leg bending and complex spring-end geometry in a single CNC program.
The YF-CNC-12100 provides the forming capability required for large double torsion springs with complex structures.
Agricultural double torsion springs
Heavy equipment double torsion springs
Automotive mechanism double torsion springs
Industrial balancing springs
Mechanical return systems
The system supports synchronized forming of dual coil sections, connecting bridges and customized spring legs.
The machine is suitable for manufacturing large extension springs requiring high tensile force and customized end structures.
Large tension springs
Heavy return springs
Industrial extension springs
Counterbalance springs
Equipment tension springs
Extension springs with custom hooks
Custom hook and loop designs can be developed according to customer drawings and installation requirements.
The YF-CNC-12100 can produce large compression springs requiring strong wire forming capability and stable pitch control.
Heavy industrial compression springs
Large cylindrical compression springs
Variable pitch compression springs
Machinery buffer springs
Heavy-load mechanical springs
Equipment support springs
The forming process can be optimized according to spring force requirements, coil dimensions and operating conditions.
The YF-CNC-12100 is suitable for producing large agricultural springs requiring high strength and long service life.
Agricultural tine springs
Cultivator springs
Harrow springs
Seeder springs
Soil-processing equipment springs
Heavy return springs
These applications typically require large wire diameter, high fatigue resistance and complex spring leg forming.
The YF-CNC-12100 can manufacture large automotive and commercial vehicle spring components.
Automotive seat torsion springs
Heavy vehicle mechanism springs
Locking mechanism springs
Large return springs
Commercial vehicle tension springs
Customized automotive springs
The machine provides repeatable production capability for suppliers requiring heavy wire spring components.
The maximum-capacity structure of the YF-CNC-12100 makes it suitable for demanding industrial applications.
Construction machinery springs
Mining equipment springs
Hydraulic equipment springs
Heavy return springs
Mechanical linkage springs
Industrial safety mechanism springs
These applications require high forming force, stable operation and reliable long-term production.
The YF-CNC-12100 can be evaluated for large spring components used in transportation systems.
Railway mechanism springs
Heavy-duty return springs
Transport equipment springs
Mechanical locking springs
Large industrial spring assemblies
Final machine configuration should be confirmed according to product drawings, material specifications and application requirements.
The YF-CNC-12100 supports advanced forming operations for large and complex spring structures.
Large diameter coiling
Multi-coil spring forming
Long spring leg forming
Heavy-duty hook forming
Double torsion bridge forming
Multi-directional bending
Complex three-dimensional spring structures
Combined coiling and end forming
CNC program storage
Customized tooling development
The final forming solution is developed according to wire diameter, material strength, spring geometry, load requirements and production targets.
The YF-CNC-12100 can process various heavy-duty spring wire materials.
High-carbon spring steel wire
Oil-tempered spring wire
Chrome silicon spring wire
Chrome vanadium spring wire
Alloy spring steel wire
Stainless steel spring wire
High tensile spring wire
Actual capability depends on material strength, hardness, surface condition, spring geometry and tooling requirements.
Yinfeng provides customized tooling development and production solutions for large spring applications.
Customers should provide:
Spring drawing
Physical sample
Wire diameter
Material grade
Tensile strength
Coil diameter
Spring length
Number of coils
Spring load requirement
Leg dimensions
Hook design
Required tolerance
Production quantity
Yinfeng can evaluate the spring structure and develop suitable tooling and CNC forming programs.
