Engineered for railway springs, mining equipment springs, construction machinery springs, and ultra heavy-duty industrial wire forming applications.

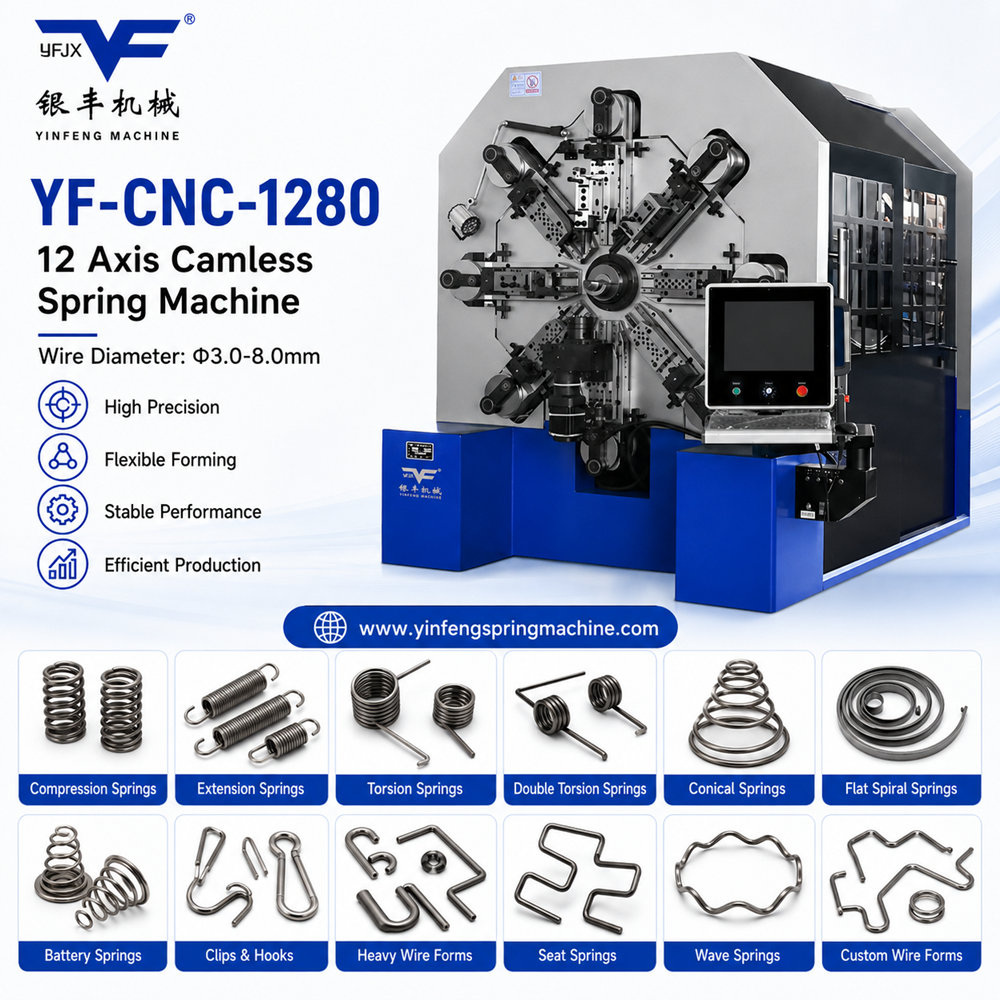

The YF-CNC-1280 is Yinfeng's ultra heavy-duty CNC camless spring forming machine developed for manufacturers processing spring wire from Ø3.0 mm to Ø8.0 mm.
Its high-power 12-axis servo system, four pairs of wire feed wheels, independent wire rotation, and eight heavy-duty forming slides provide the torque, stability, and forming capability required for large industrial spring production.
Unlike standard camless spring machines designed mainly for small or medium wire diameters, the YF-CNC-1280 is optimized for thick spring wire, high forming loads, and continuous production of large, high-strength components.
12-axis CNC camless spring forming system
Processes spring wire from Ø3.0–8.0 mm
15 kW high-torque wire feeding servo motor
Four pairs of heavy-duty wire feed wheels
Independent 5.5 kW wire rotation servo
Independent mandrel rotation and spinner control
Eight 4.5 kW servo-controlled forming slides
Maximum wire feed speed up to 100 m/min
More than 2,000 production programs can be stored
Fast product changeover without mechanical cam replacement
Suitable for large springs and complex heavy-wire forms
English interface and customized language service available
The YF-CNC-1280 is suitable for producing large and high-load spring components, including:
Large Compression Springs
Heavy Torsion Springs
Large Double Torsion Springs
Railway Suspension Springs
Mining Equipment Springs
Construction Machinery Springs
Agricultural Machinery Springs
Heavy Industrial Extension Springs
Large Spring Clips
Heavy Wire Hooks
Industrial Retaining Components
Large Custom Wire Forms
The machine is particularly suitable for parts requiring high forming force, multiple bending directions, wire rotation, and precise leg positioning.
Processing spring wire up to Ø8.0 mm creates manufacturing challenges that are significantly different from small-wire spring production.
Heavy spring wire requires:
Greater feeding force
Higher servo torque
Stronger wire gripping
More rigid machine construction
Better springback compensation
Stable multi-axis synchronization
Stronger forming tools
Reliable performance during continuous production
The YF-CNC-1280 addresses these requirements through a reinforced mechanical structure and a high-power servo configuration designed specifically for heavy industrial spring manufacturing.
The YF-CNC-1280 is equipped with a 15 kW wire feeding servo motor and four pairs of wire feed wheels.
This configuration provides:
Strong gripping force for thick wire
Stable feeding under high resistance
Accurate wire length control
Reduced wire slippage
Improved dimensional consistency
Reliable feeding during continuous production
Stable wire feeding is especially important when processing high-strength alloy spring wire and large-diameter materials.
The 5.5 kW wire rotation servo motor allows the wire to rotate independently during the forming process.
This makes it possible to produce:
Three-dimensional spring shapes
Complex torsion spring legs
Heavy double torsion springs
Multi-directional bends
Large custom wire forms
Independent wire rotation significantly expands the machine's forming flexibility compared with equipment that only supports forward wire feeding.
The machine uses eight independently controlled forming slides, each powered by a 4.5 kW servo motor.
These slides can be programmed to perform different forming actions, including:
Coiling
Bending
Pitch forming
Leg forming
End shaping
Multi-step wire forming
The independent slide structure allows the tools to work in a coordinated sequence according to the product program.
| Specification | YF-CNC-1280 |
|---|---|
| Model | YF-CNC-1280 |
| Wire Diameter | Ø3.0–8.0 mm |
| Max. Wire Feed Instruction Value | 10000.00 mm |
| Min. Wire Feed Instruction Value | 0.01 mm |
| Max. Wire Feed Speed | 0–100 m/min |
| Max. Wire Feed Length | Infinite Length |
| Input Voltage | 380V ±10%, 50Hz (Customized) |
| Program Data Storage | More Than 2,000 Programs |
| Total Power | 59.5 kW |
| Number of Axes | 12 Axis |
| Quantity of Wire Feed Wheels | 4 Pairs |
| Wire Feeding Servo Motor | 15 kW |
| Wire Rotation Servo Motor | 5.5 kW |
| Mandrel Rotation Servo Motor | 1.5 kW |
| Spinner Servo Motor | 1.5 kW |
| Forming Slide Servo Motor | 4.5 kW × 8 |
The YF-CNC-1280 is suitable for spring manufacturers serving heavy industrial sectors such as:
Railway Equipment
Mining Machinery
Construction Machinery
Agricultural Equipment
Heavy Trucks
Port Machinery
Lifting Equipment
Energy Equipment
Oil and Gas Equipment
Marine Engineering
Metallurgical Machinery
Heavy Industrial Automation
These industries often require strong, durable spring components capable of operating under high loads and demanding working conditions.
The machine can process different spring wire materials within its specified wire diameter range, including:
High Carbon Spring Steel
Oil-Tempered Spring Wire
Chrome Silicon Steel
Chrome Vanadium Steel
Stainless Steel Wire
Alloy Spring Steel
High-Tensile Steel Wire
Actual production capability depends on the material tensile strength, hardness, spring geometry, tooling design, and forming requirements.
Customers are encouraged to provide spring drawings and material information for machine suitability evaluation.
The high-power servo system provides the torque required for bending and forming thick spring wire.
Four pairs of feed wheels and a 15 kW feeding servo help maintain accurate and consistent wire movement.
Independent wire rotation, mandrel rotation, spinner control, and eight forming slides support complex spring geometries.
New spring designs can be developed by adjusting programs and tool positions instead of replacing mechanical cams.
Optimized production programs can be saved and reused, helping reduce setup time for repeat orders.
The programmable camless system allows manufacturers to produce multiple heavy spring designs on the same machine.
Yinfeng provides professional CNC spring forming equipment and production solutions for customers worldwide.
Our services include:
Spring Drawing Evaluation
Machine Selection Consultation
Sample Production Testing
Tooling Configuration Support
Factory Acceptance Testing
Installation Guidance
Machine Operation Training
Programming Support
English Control Interface
Customized Language Service
Spare Parts Supply
Online Technical Assistance
Professional After-Sales Service
Yinfeng works with customers to evaluate spring dimensions, wire materials, forming complexity, and production requirements before recommending a machine solution.
The YF-CNC-1280 processes spring wire from Ø3.0 mm to Ø8.0 mm.
The machine is suitable for large compression springs, heavy torsion springs, double torsion springs, railway springs, mining equipment springs, construction machinery springs, and other large industrial spring components.
Four pairs of feed wheels provide stronger gripping force and more stable feeding when processing thick or high-strength spring wire.
The wire rotation servo rotates the wire during forming, allowing the machine to produce complex three-dimensional springs and multi-directional wire forms.
Yes. Its wire rotation, mandrel rotation, spinner, and independent forming slides make it suitable for producing large and complex double torsion springs.
Yes. The CNC controller can store more than 2,000 production programs for repeat production and faster product changeovers.
Yes. English is available, and Yinfeng also provides customized language services according to customer requirements.
The maximum wire feed speed is 100 m/min. Actual production speed depends on wire material, spring geometry, forming complexity, product size, and quality requirements.
The YF-CNC-1280 Ultra Heavy-Duty CNC Camless Spring Forming Machine is developed for manufacturers that need to process thick spring wire and produce large, high-strength industrial spring components.
With a Ø3.0–8.0 mm wire range, 12-axis servo control, four pairs of wire feed wheels, powerful wire rotation, and eight heavy-duty forming slides, the machine provides the forming power, flexibility, and production stability required for demanding applications.
For railway, mining, construction, agricultural, and other heavy industrial spring production, the YF-CNC-1280 offers a reliable and flexible CNC manufacturing solution.
The YF-CNC-1280 is designed for manufacturing large, high-load and complex spring components from Ø3.0–8.0 mm spring wire. Its coordinated 12-axis servo system supports wire feeding, coiling, wire rotation, mandrel movement, leg forming, hook forming and complex spring-end shaping.
The machine is suitable for manufacturers producing heavy-duty springs for railway equipment, mining machinery, construction machinery, agricultural equipment, commercial vehicles and industrial systems.

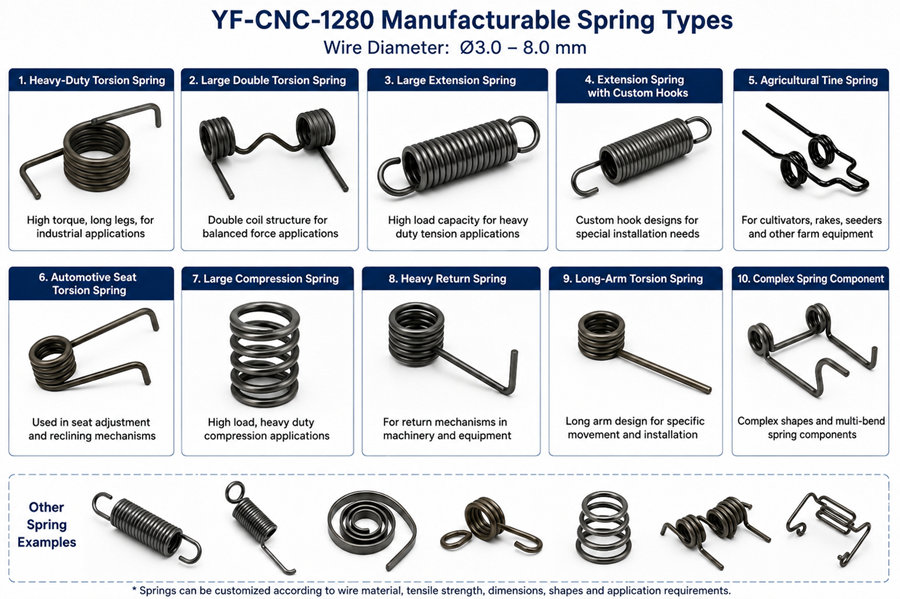

The YF-CNC-1280 can be configured to manufacture the following spring products:
Heavy-duty torsion springs
Large double torsion springs
Large extension springs
Extension springs with custom hooks
Large compression springs
Agricultural tine springs
Automotive seat torsion springs
Heavy return springs
Industrial tension springs
Long-arm torsion springs
Large spring clips
Multi-coil spring components
Springs with complex bent legs
Custom heavy-duty spring components
Combined coiling and three-dimensional end-forming parts
Final manufacturability depends on the wire material, tensile strength, spring geometry, coil diameter, number of coils, leg length, hook design, dimensional tolerances and required production output.
The YF-CNC-1280 is suitable for producing large torsion springs that require high forming force, accurate coil control and precise positioning of long or complex spring legs.
Industrial torsion springs
Long-arm torsion springs
Heavy machinery return springs
Automotive seat torsion springs
Agricultural machinery torsion springs
Hinge and locking mechanism springs
Heavy-duty linkage springs
The coordinated servo axes allow the machine to complete coiling, leg bending, angle control and multi-directional end forming within one programmed production sequence.
The machine can manufacture large double torsion springs with symmetrical or asymmetrical coils, connecting bridges and customized spring legs.
Agricultural machinery
Automotive seating systems
Construction equipment
Industrial return mechanisms
Heavy mechanical assemblies
Linkage and locking systems
Independent wire rotation and coordinated forming-slide movements help control the relationship between the two coil sections, connecting section and spring legs.
The YF-CNC-1280 supports the production of large extension springs with standard or customized end configurations.
Heavy-duty extension springs
Industrial tension springs
Extension springs with machine hooks
Extension springs with extended loops
Extension springs with custom-shaped hooks
Return springs
Counterbalance springs
Equipment tensioning springs
Hook and loop geometries can be developed according to the customer’s drawing, spring load requirements and installation conditions.
The machine can also be configured to produce large compression springs requiring stable wire feeding, controlled coiling and accurate pitch formation.
Heavy industrial compression springs
Machinery buffer springs
Equipment return springs
Large cylindrical compression springs
Variable-pitch compression springs
Custom heavy-load compression springs
Actual production capability depends on the spring index, coil diameter, pitch, material strength and required dimensional tolerances.
The YF-CNC-1280 is suitable for manufacturing agricultural tine springs and other heavy spring components used in farming machinery.
Cultivator tine springs
Hay rake tine springs
Seeder spring tines
Harrow springs
Agricultural return springs
Double torsion tine springs
Soil-processing equipment springs
These products often require thick wire, long spring legs, high spring force and complex three-dimensional forming.
The machine can be configured for medium-to-large spring components used in vehicle seating systems, adjustment mechanisms and heavy vehicle assemblies.
Automotive seat torsion springs
Seat adjustment springs
Heavy return springs
Locking mechanism springs
Commercial vehicle extension springs
Heavy-duty hinge springs
Custom vehicle spring components
Stored CNC programs support repeat production and faster changeover between different spring designs.
The YF-CNC-1280 is suitable for manufacturers serving railway, transport and heavy vehicle industries.
Railway equipment torsion springs
Heavy return springs
Tension springs
Locking mechanism springs
Suspension-related spring components
Transport equipment spring assemblies
Machine configuration and tooling should be confirmed according to the spring drawing, material grade and operating load requirements.
The reinforced structure and high-torque servo system make the YF-CNC-1280 suitable for demanding spring applications in mining and construction equipment.
Heavy machinery torsion springs
Large extension springs
Return springs
Linkage springs
Protective mechanism springs
Equipment locking springs
Custom high-load spring components
These applications usually require strong materials, stable forming force and reliable repeatability.
The YF-CNC-1280 can combine coiling and multi-directional forming in one programmed sequence.
Single and multiple coil sections
Symmetrical and asymmetrical spring structures
Long straight spring legs
Multi-directional leg bending
Custom hook and loop forming
Complex three-dimensional spring ends
Double torsion connecting-bridge forming
Multiple bends after coiling
Coiled sections combined with shaped wire ends
Stored programs for repeat production
Customized tooling for special spring geometries
The final forming process is developed according to the spring drawing, wire material, coil diameter, free length, leg geometry, end shape, dimensional tolerance and production requirements.
The YF-CNC-1280 can be evaluated for processing different spring wire materials within its applicable wire diameter range.
High-carbon spring steel wire
Oil-tempered spring wire
Chrome silicon spring steel
Chrome vanadium spring steel
Stainless steel spring wire
Alloy spring steel wire
High-tensile spring wire
Other spring materials according to application requirements
Actual processing capability depends on tensile strength, hardness, wire surface condition, spring index, bending radius and spring geometry.
Yinfeng can develop customized tooling and forming solutions according to customer spring drawings, samples, materials and production requirements.
For an accurate evaluation, customers are advised to provide:
Spring drawing or physical sample
Wire diameter
Material grade
Tensile strength
Coil outside diameter
Coil inside diameter
Number of coils
Free length
Spring leg length
Bending angles
Hook or loop geometry
Required tolerances
Estimated production quantity
Required production speed
Sample forming tests can be arranged when the necessary spring information and wire materials are available.
