How To Calculate Spring Load?
Spring load is one of the most important parameters in spring design and manufacturing. It refers to the force exerted by a spring when it is compressed, extended, or deflected by a specific distance. Understanding how to calculate spring load helps engineers, manufacturers, and designers select the correct spring for an application and ensure reliable performance.
What Is Spring Load?
Spring load is the amount of force required to compress or extend a spring by a certain distance. It is typically measured in:
Newtons (N)
Pounds-force (lbf)
Kilograms-force (kgf)
The load increases as the spring is compressed or stretched, following Hooke’s Law within the elastic range of the material.
Basic Spring Load Formula
For most compression and extension springs, spring load can be calculated using:
Where:
F = Spring Load (Force)
k = Spring Rate (Force per unit length)
x = Deflection (Compression or extension distance)
This formula shows that the force generated by a spring is directly proportional to its deflection.
Example of Spring Load Calculation
Suppose a compression spring has:
Spring Rate (k) = 10 N/mm
Compression Distance (x) = 5 mm
The load is:
F = 10 × 5 = 50 N
This means a force of 50 Newtons is required to compress the spring by 5 mm.
Understanding Spring Rate
Spring rate, also called spring constant, indicates how much force is needed to compress or extend the spring by one unit of distance.
For example:
5 N/mm spring rate = 5 Newtons required for every millimeter of compression.
20 N/mm spring rate = 20 Newtons required for every millimeter of compression.
A higher spring rate means a stiffer spring.
Spring Load Calculation for Compression Springs
Compression springs are the most common type of spring used in industrial equipment.
To determine the working load:
Measure the free length of the spring.
Determine the compressed length.
Calculate deflection.
Deflection = Free Length − Compressed Length
Multiply the deflection by the spring rate.
This provides the actual operating load.
Factors Affecting Spring Load
Several factors influence spring load:
Wire Diameter
Larger wire diameters generally increase spring stiffness and load capacity.
Coil Diameter
Smaller coil diameters typically produce higher spring rates.
Number of Active Coils
More active coils generally reduce spring stiffness.
Material Type
Different materials have different elastic properties and load capacities.
Spring Pitch
Coil spacing affects spring behavior and influences compression characteristics.
How Spring Load Is Tested

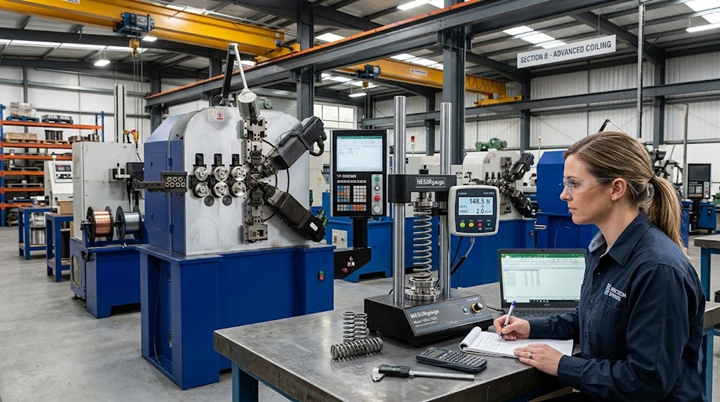

Manufacturers typically use spring testing machines to verify load values.
Testing procedures include:
Load at specified height
Load versus deflection testing
Fatigue testing
Quality control inspections
Modern testing equipment ensures springs meet design specifications before shipment.
Common Spring Load Calculation Mistakes
Incorrect Deflection Measurement
Using inaccurate compression distances leads to incorrect load calculations.
Wrong Spring Rate
Always verify spring rate through testing or manufacturer specifications.
Ignoring Preload
Some springs are installed with initial preload, which affects operating force.
Exceeding Elastic Limits
If a spring is compressed beyond its design range, calculations may no longer be accurate.
Spring Load and CNC Spring Manufacturing
Modern CNC spring machines help manufacturers achieve highly accurate spring load characteristics by controlling:
Wire feeding
Coil diameter
Pitch spacing
Number of active coils
Precise CNC control improves consistency and ensures every spring meets required load specifications.
Conclusion
Calculating spring load is essential for proper spring selection and performance evaluation. Using the simple formula F = kx, engineers can determine the force generated by a spring at a given deflection. Accurate spring load calculations improve product reliability, manufacturing quality, and application safety.
Whether designing compression springs, extension springs, or custom wire forms, understanding spring load is a fundamental step in successful spring engineering.
