1260 CNC Wire Forming Machine with Chamfering & Grooving Unit for Linkage Rods
1260 CNC Wire Forming Machine with Chamfering & Grooving Unit
The Yinfeng 1260 CNC Wire Forming Machine is a heavy-duty camless forming platform designed for wire diameters from Φ2.0–6.0 mm.
For manufacturers producing linkage rods and formed wire components that require additional end processing, the machine can be customized with chamfering and grooving units.
Instead of producing the formed part first and then transferring it to separate machines for secondary machining, the customized system can integrate forming and end processing into one automated production workflow.
Wire Feeding → Straightening → CNC Forming → Cutting → End Chamfering → Grooving → Finished Part
Why Add Chamfering and Grooving?
Many linkage rods and formed wire components require more than bending. Their ends must often fit into holes, clips, bushings, latches, pivots or retaining systems.

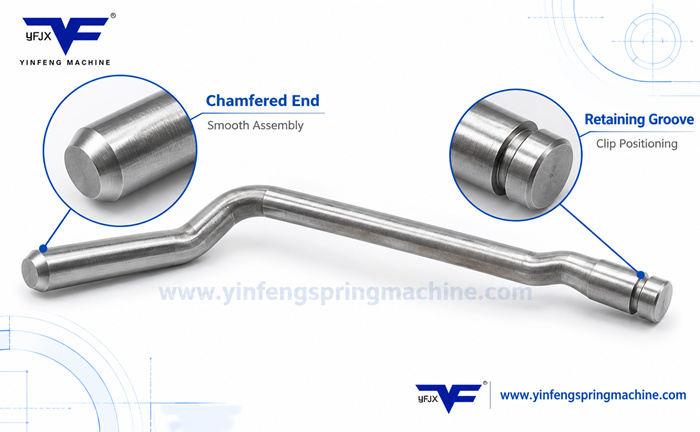

Chamfered End
Chamfering removes sharp cut edges and creates a controlled lead-in, helping the rod enter plastic connectors, bushings, mounting holes and other mating components more smoothly.
Retaining Groove
A circumferential groove can provide a defined position for an E-clip, retaining ring, locking clip or other axial-retention component.
Integrated Processing
Combining forming, chamfering and grooving can reduce secondary machining, manual transfer, repeated positioning and work-in-process handling.

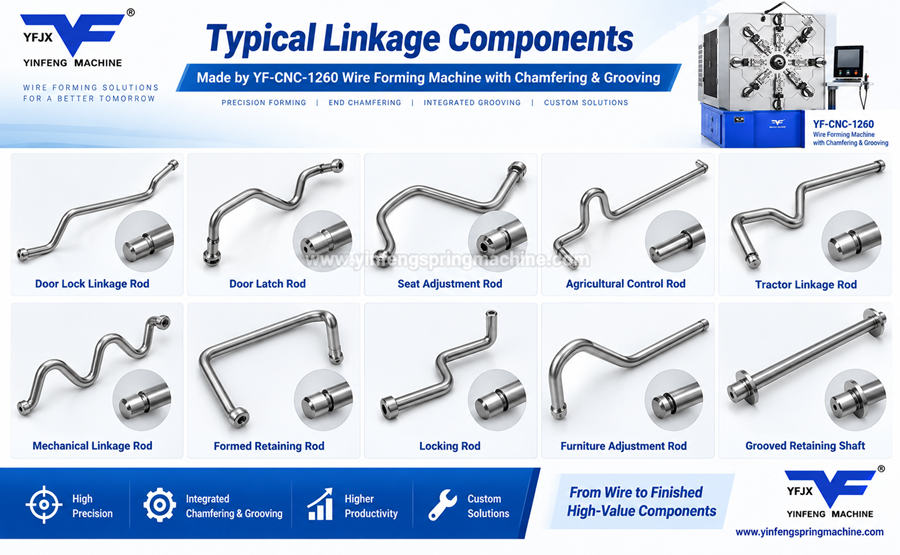

Best-Suited Linkage Components
The customized 1260 provides the greatest value when a part requires multiple bends plus precision end processing.
Automotive Door Lock Linkage Rods
Door Latch Rods
Door Handle Linkage Rods
Seat Adjustment Linkage Rods
Seat Locking Rods
Hood and Trunk Latch Rods
Automotive Control Rods
Agricultural Control Rods
Tractor and Cultivator Linkage Rods
Industrial Mechanical Linkage Rods
Locking Rods
Formed Retaining Rods
Special Bent Shafts
Four Major Application Industries
1. Automotive Linkage & Door Mechanisms
Automotive door, latch, seat and control systems use formed metal rods to transfer mechanical movement between handles, locks, actuators and moving mechanisms.
Typical parts: Door Lock Rod, Door Latch Rod, Door Handle Rod, Seat Adjustment Rod, Seat Locking Rod, Hood Latch Rod, Trunk Latch Rod and Automotive Control Rod.
2. Agricultural & Construction Machinery
Agricultural and construction equipment uses linkage rods in adjustment, locking, control and mechanical operating systems.
Typical parts: Agricultural Control Rod, Tractor Linkage Rod, Seeder Control Rod, Cultivator Adjustment Rod, Equipment Locking Rod and Construction Equipment Linkage Rod.
3. Industrial Machinery & Mechanical Linkages
Industrial machines use linkage components to transfer motion between actuators, locking devices, levers and mechanical control systems.
Typical parts: Mechanical Linkage Rod, Machine Control Rod, Actuator Connecting Rod, Pivot Linkage Rod, Locking Rod, Spring Anchor Rod and Formed Retaining Rod.
4. Hardware, Furniture & Equipment
Furniture, appliances, fitness equipment and general hardware products also use formed steel rods with bends, grooves and special end structures.
Typical parts: Furniture Locking Rod, Adjustment Rod, Fitness Equipment Rod, Appliance Linkage Rod, Door Mechanism Rod, Hardware Pivot Rod and Grooved Retaining Shaft.
Recommended 1260 Processing Solution
The main value of the customized Yinfeng 1260 is the ability to combine multiple processes in one production platform.
Servo CNC Wire Feeding
Wire Straightening
Multi-Axis CNC Forming
Automatic Cutting
End Chamfering
Groove Processing
Automatic Part Discharge
The exact process sequence and auxiliary units should be configured according to the customer's part drawing, material, groove dimensions, chamfer requirements and production capacity.
Main Processing Functions
CNC Wire Feeding
Servo-controlled wire feeding provides repeatable length control and accurate positioning before forming.
Multi-Axis CNC Forming
The camless forming system can produce complex 2D and 3D linkage geometries without relying on traditional cam arrangements.
Automatic Cutting
The formed component can be cut automatically according to the programmed production sequence.
End Chamfering
Chamfering can remove sharp edges and create a controlled lead-in for holes, bushings, plastic connectors and other mating components.
Groove Processing
Grooves can be produced for:
E-Clips
Retaining Rings
Locking Clips
Axial Positioning
Mechanical Retention
Groove width, diameter, depth and position should be manufactured according to the customer's component drawing and mating retaining system.
Typical Production Flow
Wire Feeding → CNC Forming → Length Control & Cutting → Chamfering → Grooving → Part Discharge
1. Wire Feeding
Wire is automatically fed into the forming area according to the programmed component length.
2. CNC Forming
The forming tools create the required 2D or 3D component geometry.
3. Cutting
The component is separated automatically at the programmed position.
4. Chamfering
The required end receives the specified chamfer or edge treatment.
5. Grooving
A retaining groove or customized groove is processed according to the finished part drawing.
6. Finished Part Discharge
The finished component is discharged for inspection, assembly or downstream processing.
When the 1260 Is the Right Choice
The customized 1260 is especially suitable for parts requiring:
2D or 3D Wire Forming
Multiple Bends
Chamfered Ends
E-Clip or Retaining-Ring Grooves
Special End Structures
Integrated Forming and End Processing
When Dedicated Pin Equipment May Be Better
Not every grooved or chamfered component requires a CNC camless wire forming machine.
Simple straight components such as:
Straight Clevis Pins
Straight Dowel Pins
Simple Straight Grooved Shafts
Straight Retaining Pins
If the component has no bending requirement and only requires cutting, chamfering and grooving, a dedicated automatic pin-processing line may provide higher productivity. The 1260 provides the greatest advantage when wire forming and end machining must be integrated into the same process.
Wire Diameter & Suitable Materials
Wire Diameter: Φ2.0–6.0 mm
The exact forming and end-processing capability depends on material tensile strength, hardness, component geometry, groove dimensions and chamfer requirements.
Carbon Steel Wire
Stainless Steel Wire
Spring Steel Wire
Alloy Steel Wire
Galvanized Steel Wire
Other Suitable Round Wire Materials
Key Advantages
One Machine, Multiple Processes: CNC forming can be combined with chamfering and grooving.
Reduced Secondary Operations: Helps reduce transfer between separate machines.
Suitable for Complex Linkage Parts: Ideal for parts requiring bends plus precision end processing.
Programmable Production: Product programs can be stored and reused.
Flexible Product Changeover: Different linkage parts can be produced after program and tooling changes.
Reduced Manual Handling: Integrated processing can reduce operator intervention between stages.
Customized Automation: Additional inspection, collection or auxiliary functions can be developed according to project requirements.
Custom Processing Options
Depending on the component drawing, Yinfeng can develop additional processing modules including:
Chamfering
Groove Processing
Flattening
End Forming
Punching
Special Cutting
Length Detection
Automatic Part Collection
CNC Control System
The machine uses a CNC control system for programmable production. Different product programs can be stored and reused, helping operators switch between repeat production orders.
The control interface supports Chinese and English, and additional interface languages such as Spanish, Russian and Turkish can be customized according to customer requirements.
Customized Tooling & Technical Evaluation
Every linkage component has different bending geometry, groove dimensions, end structure and assembly requirements.
For an accurate machine configuration, please provide:
Component Drawing
Wire Diameter
Material
2D or 3D Bending Dimensions
Chamfer Dimensions
Groove Diameter
Groove Width
Groove Position
Required Production Capacity
Finished-Part Tolerance
Yinfeng engineers can then evaluate the forming process and configure the appropriate tooling, chamfering unit, grooving unit and auxiliary processing solution.
Frequently Asked Questions
Can the machine save different product programs?
Yes. Programs for different components can be stored and reused, which is useful for manufacturers producing multiple linkage rod models.
Can the control interface use different languages?
Yes. Chinese and English are available, and additional languages such as Spanish, Russian and Turkish can be customized according to customer requirements.
How long does it take to learn machine operation?
Operators with CNC or wire-forming experience can normally understand basic operation quickly. Yinfeng provides machine operation and programming training.
Can one operator manage multiple machines?
Under stable automatic production conditions, one operator may supervise multiple machines depending on component complexity and factory production arrangement.
Can different materials be used?
Yes. Different steel wire materials can be processed after tooling and machine parameters are adjusted according to the material properties.
Can production parameters be modified during production?
Relevant forming parameters can be adjusted through the CNC control system when process optimization is required.
Does every product require chamfering and grooving?
No. Chamfering and grooving units are intended for components whose assembly design requires processed ends. Parts requiring only CNC forming can be produced without these additional processes.
Can the machine produce retaining-ring grooves?
A customized grooving unit can be developed for components requiring E-clips, retaining rings or other locating grooves. Groove dimensions and tolerances should be defined according to the customer's drawing.
From Wire to Finished Linkage Component
The customized Yinfeng 1260 combines CNC wire forming with optional chamfering and grooving technology to help manufacturers reduce separate processing steps and automate complex linkage rod production.
Wire Diameter: Φ2.0–6.0 mm
CNC Forming + Cutting + Chamfering + Grooving
Send us your component drawing, wire material, bending dimensions, chamfer dimensions and groove requirements. Yinfeng can evaluate the appropriate machine configuration and manufacturing process for your project.
