Orthodontic Stainless Steel Arch Wire Manufacturing Solution
Orthodontic Stainless Steel Arch Wire Manufacturing Solution
The Orthodontic Stainless Steel Arch Wire Manufacturing Solution is developed for manufacturers requiring precise and repeatable production of stainless steel dental archwires with controlled arch geometry, symmetry, wire orientation, and surface quality.
Yinfeng can configure a CNC wire forming process that integrates precision feeding, straightening, arch-profile forming, end positioning, cutting, customized tooling, and program storage according to the customer's actual archwire drawing and stainless steel wire specification.
Typical Orthodontic Archwire Products
The manufacturing solution can be developed for a range of stainless steel orthodontic wire products.
Stainless Steel Orthodontic Arch Wires
U-Shaped Dental Archwires
Upper Dental Arch Wires
Lower Dental Arch Wires
Round Stainless Steel Archwires
Rectangular Stainless Steel Archwires
Preformed Orthodontic Archwires
Customized Dental Arch Forms
Special Orthodontic Wire Profiles
Actual manufacturability depends on wire diameter, cross-section, stainless steel grade, material hardness, arch dimensions, bend radius, end geometry, surface requirements, tooling arrangement, and dimensional tolerance.
<!-- CHALLENGES -->
Key Manufacturing Challenges
Orthodontic archwire manufacturing requires more than simply bending wire into a U-shape. The production process must maintain stable geometry and surface quality across repeated batches.
Arch Geometry & Symmetry
The finished wire must follow the approved upper, lower, or customized dental arch profile. Accurate feeding and forming are required to maintain consistent left-right symmetry and overall arch dimensions.
Wire Length & Bend Position
Small deviations in feed length or bend location can change the final arch width, side length, end position, and curvature.
Springback Compensation
Stainless steel wire naturally springs back after bending. CNC forming parameters and tooling positions should be adjusted according to the actual material response.
Surface Protection
Wire guides and forming tools should minimize scratches, dents, pressure marks, and unnecessary surface damage during feeding and forming.
<!-- EQUIPMENT -->
Recommended Yinfeng Equipment Solution
For orthodontic stainless steel archwire manufacturing, Yinfeng can configure a precision CNC wire forming system according to the customer's actual wire specification and arch geometry.
Precision Wire Feeding
Fine Wire Straightening
Wire Guiding
CNC Arch Profile Forming
Wire Orientation Control Where Required
Customized Arch-Form Tooling
Automatic Cutting
Program Storage and Reuse
Final machine configuration should be confirmed according to wire diameter, wire cross-section, stainless steel grade, arch dimensions, bend geometry, end configuration, tolerance, surface requirements, and target production speed.
<!-- ROUND VS RECTANGULAR -->
Round vs. Rectangular Stainless Steel Archwire
Round Stainless Steel Archwire
Round stainless steel wire has a rotationally symmetrical cross-section, making wire orientation less critical during feeding and bending.
Feed Length Accuracy
Arch Width
Front Curvature
Left-Right Symmetry
End Position
Rectangular Stainless Steel Archwire
Rectangular wire requires additional orientation control because twisting during feeding or forming can affect the final cross-sectional position and arch geometry.
Wire Orientation
Anti-Twist Control
Cross-Section Protection
Bend Radius
Tool Contact Surface
Dimensional Stability
<!-- PROCESS -->
Orthodontic Archwire Production Process
Drawing Analysis → Material Preparation → Precision Straightening → CNC Feeding → Arch Forming → Symmetry Control → Cutting → Inspection → Finishing
1. Drawing & Sample Analysis

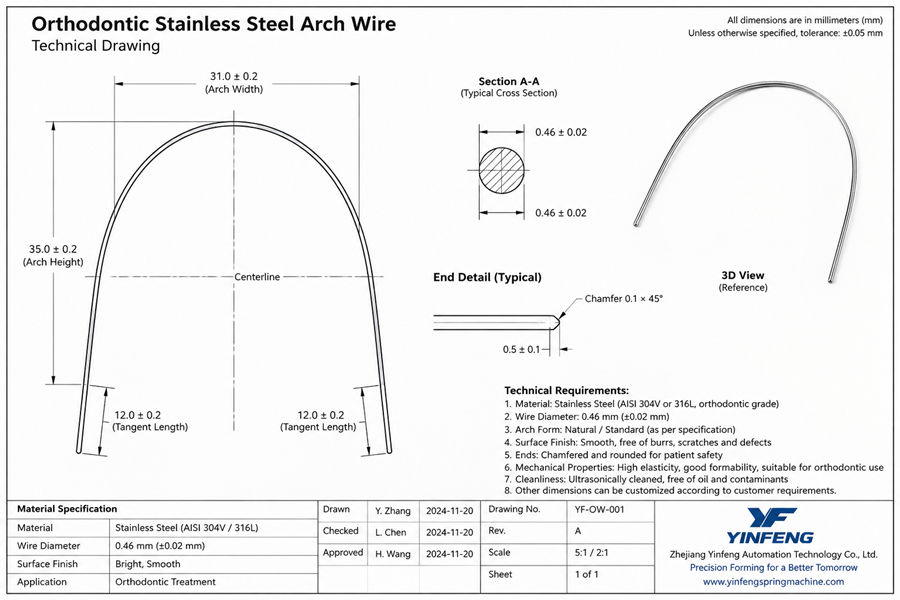

Review the product drawing, physical sample, wire specification, arch dimensions, tolerance, and required finished geometry.
2. Material Preparation & Straightening
The specified stainless steel wire is prepared according to the required diameter or rectangular cross-section, grade, hardness, and surface condition, then guided and straightened before forming.
3. CNC Feeding & Arch Forming
The servo feeding system delivers the programmed wire length while the CNC forming tools create the required upper, lower, U-shaped, or customized dental arch profile.
4. Symmetry & End Position Control
The left and right sides of the arch are formed according to the approved dimensions and required final end positions.
5. Cutting & Inspection
The completed archwire is cut to length and checked using an inspection fixture, arch template, measuring tool, or digital inspection system.
<!-- CNC ADVANTAGES -->
Why CNC Forming Is Suitable for Orthodontic Archwire Production
Better Arch Consistency: Programmed feeding and forming help maintain stable geometry.
Improved Symmetry: Accurate feed length and forming position help maintain left-right balance.
Program-Based Changeover: Different arch profiles can be stored as separate CNC programs.
Reduced Operator Dependence: Automated forming reduces repeated manual shaping.
Flexible Product Development: Parameters can be adjusted during sampling to optimize geometry and springback compensation.
<!-- QUALITY -->
Quality Control
Wire Diameter or Cross-Section
Overall Arch Width
Overall Arch Length
Front Arch Curvature
Left-Right Symmetry
Bend Position
End Position
Rectangular Wire Orientation
Surface Quality
Dimensional Repeatability
For repeat production, a dedicated arch-profile inspection fixture can provide a fast and consistent reference for operators.
<!-- TECH EVALUATION -->
Customized Tooling & Technical Evaluation
Yinfeng evaluates each orthodontic archwire project according to the actual component rather than using one generic machine configuration.
2D or 3D Product Drawings
Physical Samples
Wire Diameter
Round or Rectangular Cross-Section
Stainless Steel Grade
Arch Width
Overall Length
Curvature
End Geometry
Required Tolerance
Surface Requirements
Target Production Speed
Annual Production Quantity
Based on this information, Yinfeng can evaluate the forming sequence, machine configuration, tooling design, sample-production approach, and process feasibility.
<!-- WHY YINFENG -->
Why Choose Yinfeng?
Yinfeng develops CNC spring and wire forming solutions according to actual customer products, wire specifications, forming complexity, and production requirements.
Product Drawing Evaluation
Physical Sample Analysis
Machine Configuration Recommendation
Customized Tooling Development
Forming Process Development
Sample Production Testing
CNC Programming Support
Operator and Programming Training
English Control Interface
Customized Language Service
Spare Parts Support
Technical and After-Sales Support
<!-- FAQ -->
Frequently Asked Questions
What machine is used to make orthodontic stainless steel archwires?
A precision CNC wire forming or wire bending system can be configured to feed, straighten, form, and cut stainless steel orthodontic wire into U-shaped or customized dental arch profiles.
Can one machine produce both upper and lower archwires?
Yes. Different upper and lower arch profiles can be produced using separate CNC programs and suitable forming tools, provided the products are compatible with the selected machine configuration.
Can round and rectangular stainless steel archwires be produced?
Both may be suitable for CNC forming. Rectangular wire requires additional orientation control and suitable tooling to minimize twisting and protect the cross-section.
Can production programs be saved and reused?
Yes. Optimized archwire programs can be stored and recalled for repeat production.
Does Yinfeng provide customized tooling?
Yes. Tooling can be developed according to the customer's arch profile, wire cross-section, dimensions, tolerance, and surface requirements.
Can Yinfeng evaluate customer samples?
Yes. Customers can provide drawings, wire specifications, photographs, videos, or physical samples for forming-process evaluation.
Send Your Orthodontic Archwire Drawing for Evaluation
Send Yinfeng your archwire drawing, stainless steel specification, wire diameter or cross-section, arch dimensions, tolerance, and target production speed.
Yinfeng can evaluate the complete forming process, tooling configuration, machine selection, and sample-production approach for your specific orthodontic stainless steel archwire project.
