| Model | YF-CNC-1045 | YF-CNC-1145 | |
| Diameter of the steel wire(mm) | 1.2-4.5mm | 1.2-4.5mm | |
| Max Wire Feed instruction value | 10000.00mm | 10000.00mm | |
| Min Wire Feed instruction value | 0.01mm | 0.01mm | |
| Max Wire Feed speed | 100 m/min | 100 m/min | |
| Max Wire Feed length | Infinite length | Infinite length | |
| Input voltage | 380V±10%V50HZ (Customized) | 380V±10%V50HZ (Customized) | |
| Program data storage | More than 2000 pcs | More than 2000 pcs | |
| Total power (kw) | 16.3 | 17.8 | |
| Number of axes | 10 axis | 11 axis | |
| Quantity of the wire feed wheels | 3 pairs | 3 pairs | |
| Servo motor | Wire feeding | 5.5kw | 5.5kw |
| mandrel rotate | 1.2kw | 1.2kw | |
| Spinner | Optional | 1.0kw | |
| Slide | 1.2kw*8 | 1.2kw*8 | |
| Main Machine(L*W*H)(mm) | 1900*1100*2000 | 1900*1100*2000 | |
| Net Weight of Machine (kg) | 2100 | 2150 | |
1.Using Taiwan imported computer control system and servo motor.
2.The computer is in Chinses/English interface,easy to operation,accurate positioning,the computer can control 10 -12 servo motors,all can be synchronized or run separately.
3.The product has a precision detection tracking device,it can automatically shut down if find a substandard product.
4.The parameters such as outside diameter and angle can be modified at any moment according to the working status displayed on the screen.
5.The mechanical automatic lubricating oil supply design,to ensure the equipment movement for a long time.
After-Sales & Training
1. Our product is life-time warranty from B/L Date. Parts damaged during 12 months from B/L date will be replaced on the cost of the SELLER. But the carriage fee is borne by the buyer.
2. Seller provides the service for the buyer forever. Buyer can contact us by Skype, WhatsApp, Email and Telephone at any time. We provide 24h on-line service.
3. Buyer need mounting service and training abroad, all costs will be charged: visa, round flight tickets,boarding & lodging, labor charge of one engineer 150USD PER DAY.After receiving all the cost, seller willsend engineer to Buyer’s site.
4. Buyer need send 1-2 persons to Seller’s company for training. Training fee was borne by Seller. The flight ticket and the boarding & lodging expense should be borne by Buyer.
Products & Applications

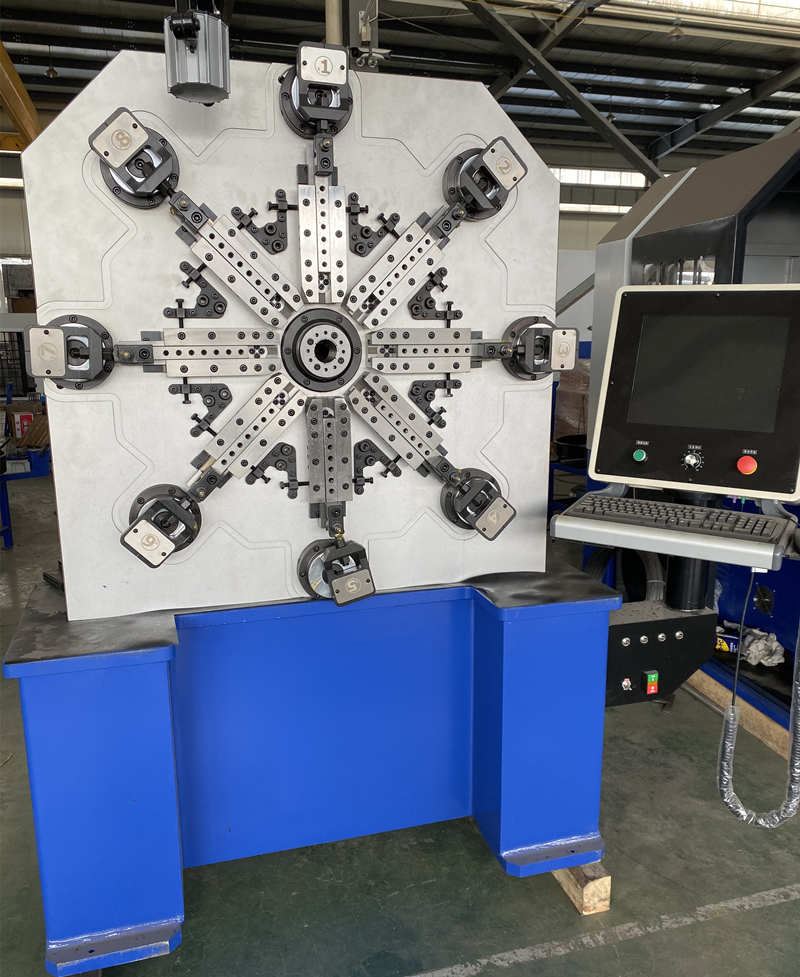

The YF-CNC-1045 and YF-CNC-1145 are multi-axis CNC wire forming machines developed for medium-wire components requiring accurate feeding, controlled bending, wire rotation, servo cutting and optional wire-end processing.
The machines are suitable for manufacturing precision 2D and 3D wire products used in electrical equipment, appliances, heating systems, lighting products, furniture hardware and industrial assemblies.
Typical Manufacturable Products
• Electric heating element support frames
• Heating wire support components
• Appliance mounting brackets
• Lighting fixture wire clips
• Electrical cabinet retaining parts
• Medium-duty wire hooks
• Wire locking components
• Equipment linkage rods
• Wire handles for small appliances
• Furniture retaining brackets
• Door hardware wire components
• Medium wire fasteners
• Formed-wire locating pins
• Wire loops and eyelets
• Industrial retaining clips
• U-shaped mounting components
• R-shaped locking clips
• Small protective wire structures
• Custom 2D wire forms
• Complex 3D wire components
• Wire parts with chamfered or pointed ends
Complex Forming and Wire-End Processing

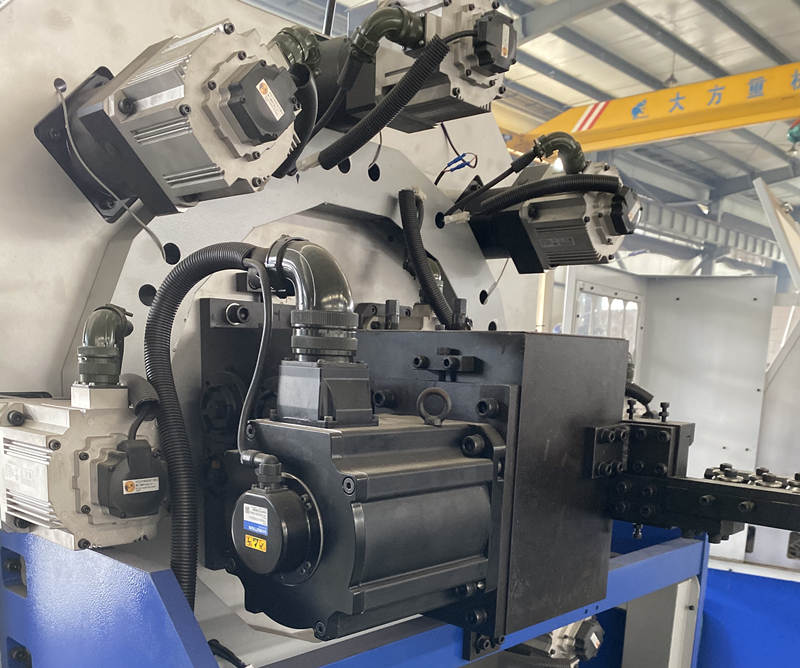

The coordinated servo axes allow wire feeding, wire rotation, mandrel movement, multi-directional forming and cutting to be programmed as one continuous process.
When equipped with the corresponding optional device, the machine can also prepare chamfered, tapered or pointed wire ends for components that require insertion, positioning or assembly functions.
Typical forming capabilities include:
• Multi-plane bending
• Wire rotation
• Long and short straight sections
• Multiple bend radii
• Closed and open loops
• Custom hook geometries
• Retaining and locating features
• Servo cutting
• Optional chamfering and pointing
• Repeat production from stored programs
Typical Industry Applications
Electrical Heating and Appliance Manufacturing
Typical products include heating element supports, appliance brackets, heating-wire retainers, mounting frames and equipment linkage parts.
Lighting and Electrical Equipment
Typical products include lamp clips, cable retainers, electrical cabinet components, contact supports and formed-wire fasteners.
Furniture and Architectural Hardware
Typical products include furniture brackets, locking components, wire retainers, hinge-related wire parts and door hardware components.
Industrial Equipment
Typical products include locating pins, machine retainers, linkage rods, medium-duty hooks and custom equipment wire parts.
Final Manufacturability
The actual processing capability depends on wire strength, material type, bending radius, product dimensions, dimensional tolerances, wire-end requirements and tooling design.
