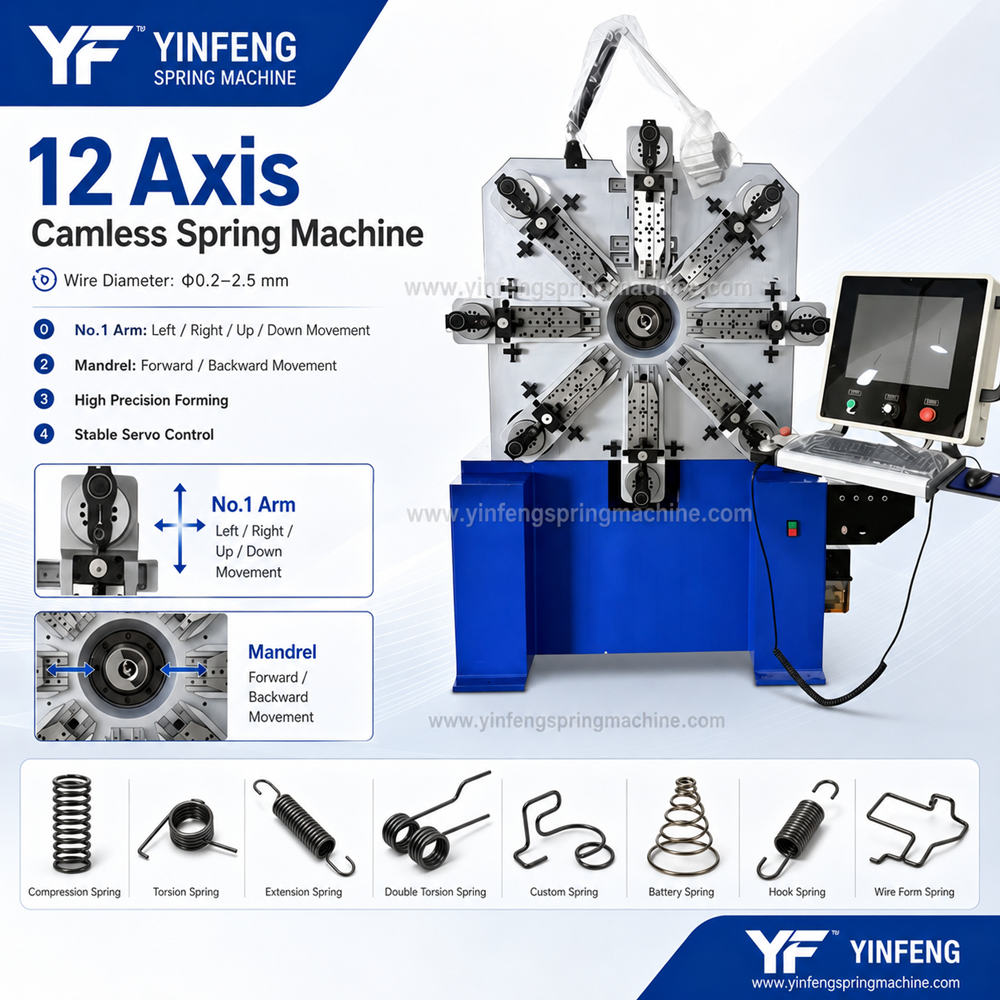

The YF-CNC-1425 is a 12-axis CNC camless spring machine developed for manufacturers requiring higher flexibility, precision control, and efficient production of complex spring components.
Based on the proven YF-CNC-1026 platform, the YF-CNC-1425 maintains the same precision wire processing capability while adding advanced forming flexibility through a movable No.1 forming slide and adjustable mandrel system.
With independent servo-controlled axes, the machine provides improved capability for producing customized springs, precision components, and high-mix production orders.
12-axis CNC camless spring forming system
No.1 forming slide with horizontal and vertical movement
Overall mandrel front and rear movement capability
Higher flexibility for complex spring structures
Reduced mechanical adjustment compared with traditional cam machines
Suitable for customized spring manufacturing
Program storage and reuse for repeat production
English control interface and customized language service available
The YF-CNC-1425 features a specially designed No.1 forming slide with horizontal and vertical movement capability.
Compared with conventional fixed forming structures, this movable slide allows the forming tool to approach the wire from different directions, providing greater flexibility for complex spring manufacturing.
Main advantages include:
Flexible tool positioning
Improved forming accessibility
Reduced tool interference
Better capability for irregular spring geometries
Easier production of multi-angle spring structures
Improved adjustment flexibility during setup
This feature is especially useful for springs with complex ends, asymmetric structures, special hooks, and multi-direction forming requirements.
The YF-CNC-1425 is equipped with a mandrel system that can move forward and backward as a complete unit.
The adjustable mandrel position provides greater control of forming space and improves adaptability for different spring designs.
Flexible coil positioning
Improved spring length control
Better forming space adjustment
Reduced tooling interference
Support for special spring structures
The YF-CNC-1425 uses a 12-axis CNC servo control system to coordinate wire feeding, rotation, forming slides, mandrel movement, and cutting operations.
The independent servo system provides:
High precision movement control
Stable production repeatability
Flexible programming
Fast product changeover
Reduced manual adjustment
Efficient customized spring production
Compared with traditional cam-based spring machines, the YF-CNC-1425 provides more flexible digital control and faster product adjustment.
No mechanical cam replacement required
Faster setup for new products
Easier parameter adjustment
Suitable for multi-model production
Better solution for customized springs
The YF-CNC-1425 can produce various precision spring components according to customer drawings and requirements.
Compression Springs
Torsion Springs
Double Torsion Springs
Extension Springs
Battery Springs
Contact Springs
Electronic Component Springs
Medical Device Springs
Precision Instrument Springs
Special-Shaped Springs
Customized Wire Springs
Suitable for precision springs used in automotive mechanisms, sensors, and functional components.
Ideal for battery springs, contact springs, connector springs, and precision electronic components.
Suitable for small precision springs used in medical devices and instruments.
Used for mechanical springs, control springs, and customized industrial components.
The YF-CNC-1425 follows the precision processing capability of the YF-CNC-1026 platform.
Wire Diameter Range: Ø0.2–2.5 mm
Suitable materials include:
Carbon Steel Wire
Stainless Steel Wire
Music Wire
Spring Steel Wire
Alloy Spring Wire
Copper Alloy Wire
Modern spring manufacturers require equipment capable of handling different product designs with shorter setup times.
The YF-CNC-1425 supports:
Multiple spring models
Small batch production
Customized spring orders
Prototype development
Frequent product changes
The CNC control system supports program storage and reuse, helping manufacturers improve production efficiency.
Fast repeat production
Reduced setup time
Improved consistency
Easy product management
Yinfeng provides customized spring manufacturing solutions based on customer drawings, samples, wire specifications, and production requirements.
Product drawing analysis
Spring sample evaluation
Tooling design
Forming process development
Sample testing
Production optimization
The YF-CNC-1425 provides a higher level of forming flexibility compared with standard camless spring machines.
Advanced 12-axis camless technology
Movable No.1 forming slide
Adjustable mandrel movement
Complex spring forming capability
Stable servo-controlled production
Flexible customized manufacturing
Yinfeng provides complete CNC spring machine solutions from product evaluation to production support.
Machine selection consultation
Spring sample testing
Customized tooling development
CNC programming support
Operator training
English control interface
Customized language service
After-sales technical support
The YF-CNC-1425 adds a movable No.1 forming slide and front-rear mandrel movement, providing additional flexibility for complex spring production.
Yes. The No.1 forming slide supports horizontal and vertical movement for more flexible tool positioning.
The adjustable mandrel position improves forming space control and supports more complex spring structures.
Yes. CNC programs can be stored and reused for repeat production.
Yes. Besides English operation, Yinfeng can provide customized control-system language solutions according to customer requirements.
The YF-CNC-1425 12 Axis CNC Camless Spring Machine represents a new generation of flexible spring manufacturing equipment.
With a movable No.1 forming slide, retractable mandrel system, and independent servo control, it provides enhanced forming capability for customized and complex precision springs.
Yinfeng provides complete spring manufacturing solutions including machine selection, tooling development, testing, training, and technical support.
The YF-CNC-1425 is suitable for producing various precision spring components, including:
- Compression Springs
- Torsion Springs
- Double Torsion Springs
- Extension Springs
- Battery Springs
- Electronic Springs
- Medical Device Springs
- Precision Instrument Springs
- Customized Wire Springs
- Special-Shaped Springs
- Small Industrial Springs
- Complex End-Formed Springs
Actual production capability depends on wire material, diameter, spring geometry, tooling configuration, and customer requirements.
